Antenna 2.4GHz 5GHz Dual Band MHF1 FPC Flexible for ESP32-C5
£0.99 GBP
Sale price
£0.99 GBP
Regular price

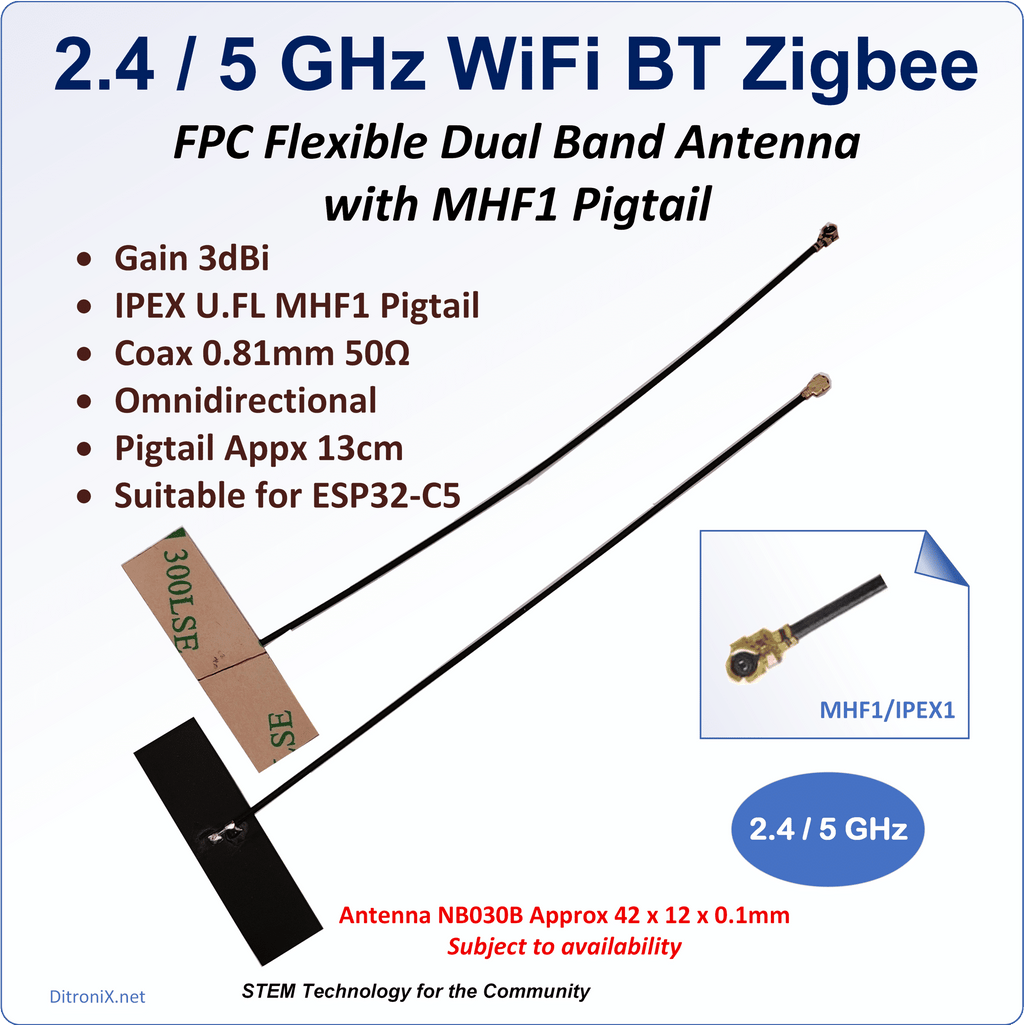

FPC Flexible Antenna 2.4GHz 5GHz Dual Band with MHF1 Pigtail Cable Panel or enclosure mounting.
2.4GHz 5GHz Dual Band Antenna suitable for WiFi ZigBee BT Bluetooth.
Features
- Antenna Gain: Unity Gain 3 dBi
- Antenna Size: approx. 42 x 12cm x 1mm

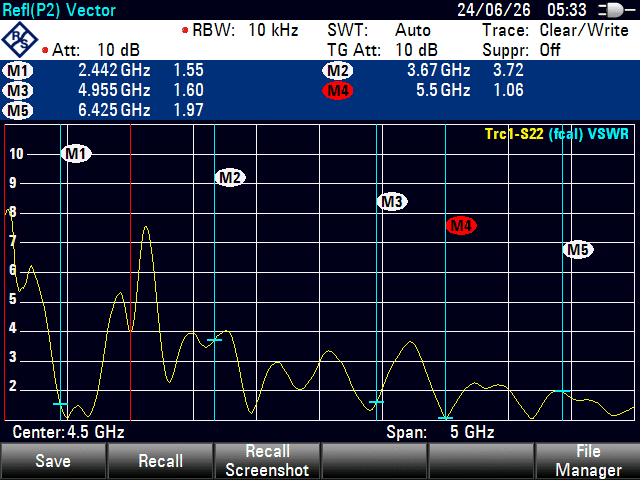

- Antenna SWR: Good ~1.8:1 @ 2.4 GHz 5GHz (see example plot)
- Frequencies 2400-2500 MHz 4800-5800 MHz
- Antenna Polarization: Omnidirectional
-

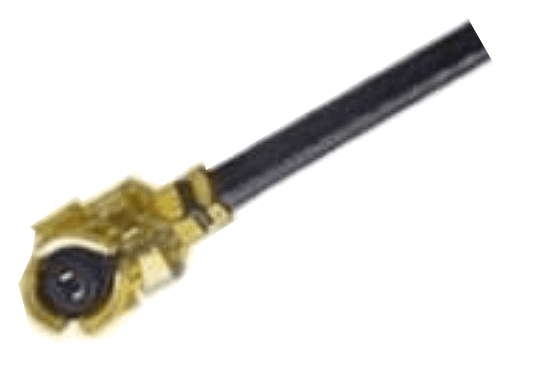

Antenna Connector: IPEX U.FL MHF1
- Suitable for ESP32-C5
- Coax 0.81mm 50 Ω RG113/RG81
- Pigtail Coax Cable Length:13cm
- Part NB030B or similar
- Adhesive Backing
- Performance: Reliable Antenna for stable and efficient signal transmission / reception
- Suitable for TX/RX: WiFi 2.4GHz 5GHz, ZigBee, Thread, BT, Bluetooth, BTLE
Antenna Size subject to availability, so size may vary vey slightly.
In the Box
- 2.4 GHz 5GHz Dual Band FPC Flexible Antenna MHF1 Connector
