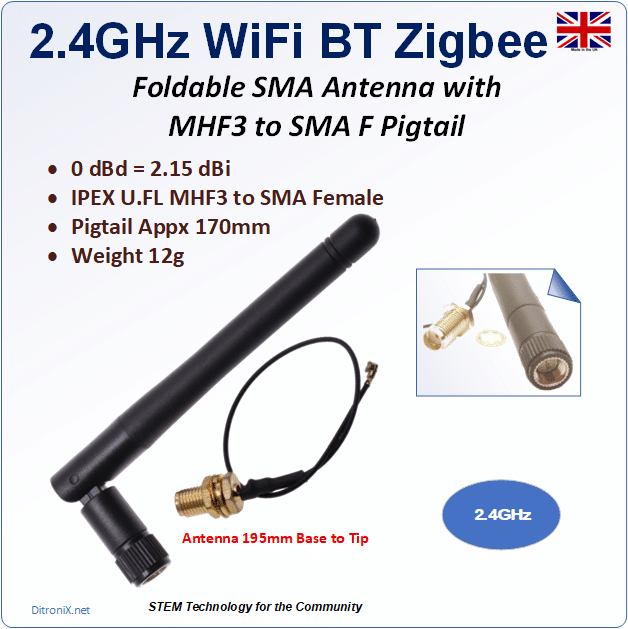

2.4 GHz suitable for WiFi ZigBee BT Bluetooth Foldable Antenna, complete IPEX/U.FL MHF3 connector with Pigtail Cable to SMA Female RF connector.
For Bulkhead, Panel or enclosure mounting.
The Antenna
Foldable Antenna 2.4G with Pigtail Cable for Bulkhead, Panel or enclosure mounting.
2.4 GHz suitable for WiFi ZigBee BT Bluetooth Foldable Antenna.
Features
Complete IPEX/U.FL MHF3 connector with Pigtail Cable to SMA Female RF connector.
- Antenna Gain: Unity Gain 0 dBd / 2.5 dBi
- Antenna Length: approx. 11cm

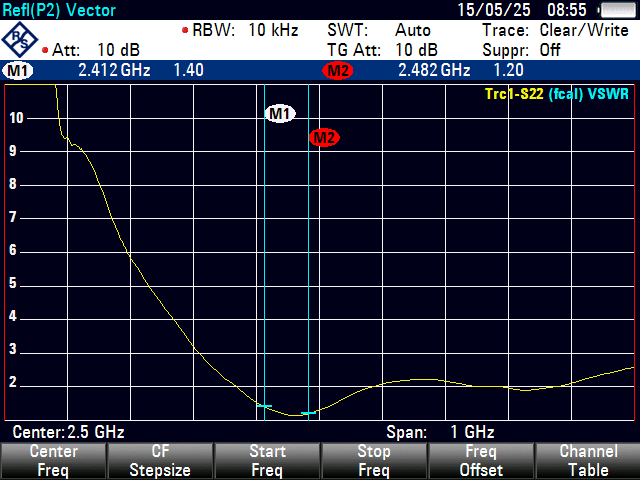

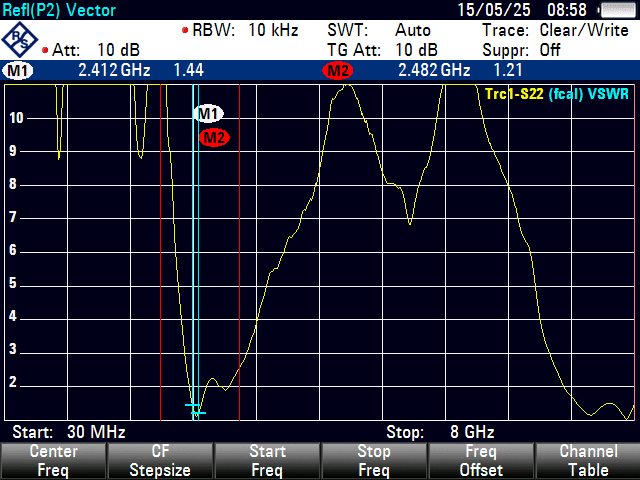

- Antenna SWR: Very Good and Stable ~1.2:1 @ 2.4 GHz (see example plots)
- Antenna Polarization: Vertical when upright
- Antenna Connector: SMA Male
- Pigtail Coax Cable Length:170mm
- Pigtail Connectors IPEX/U.FL to SMA Female
- Folding: Antenna folder to allow optimal positioning
- Performance: Reliable Antenna for stable and efficient signal transmission / reception
- Suitable for TX/RX: WiFi 2.4GHz, ZigBee, Thread, BT, Bluetooth, BTLE (Vertical Polarization)
- Can be used for RX: GPS (Horizontal Polarization)
In the Box
- 2.4 GHz Foldable Antenna
- IPEX/U.FL Pigtail Cable to SMA Female RF connector
- SMA Mounting Nut and Washer
