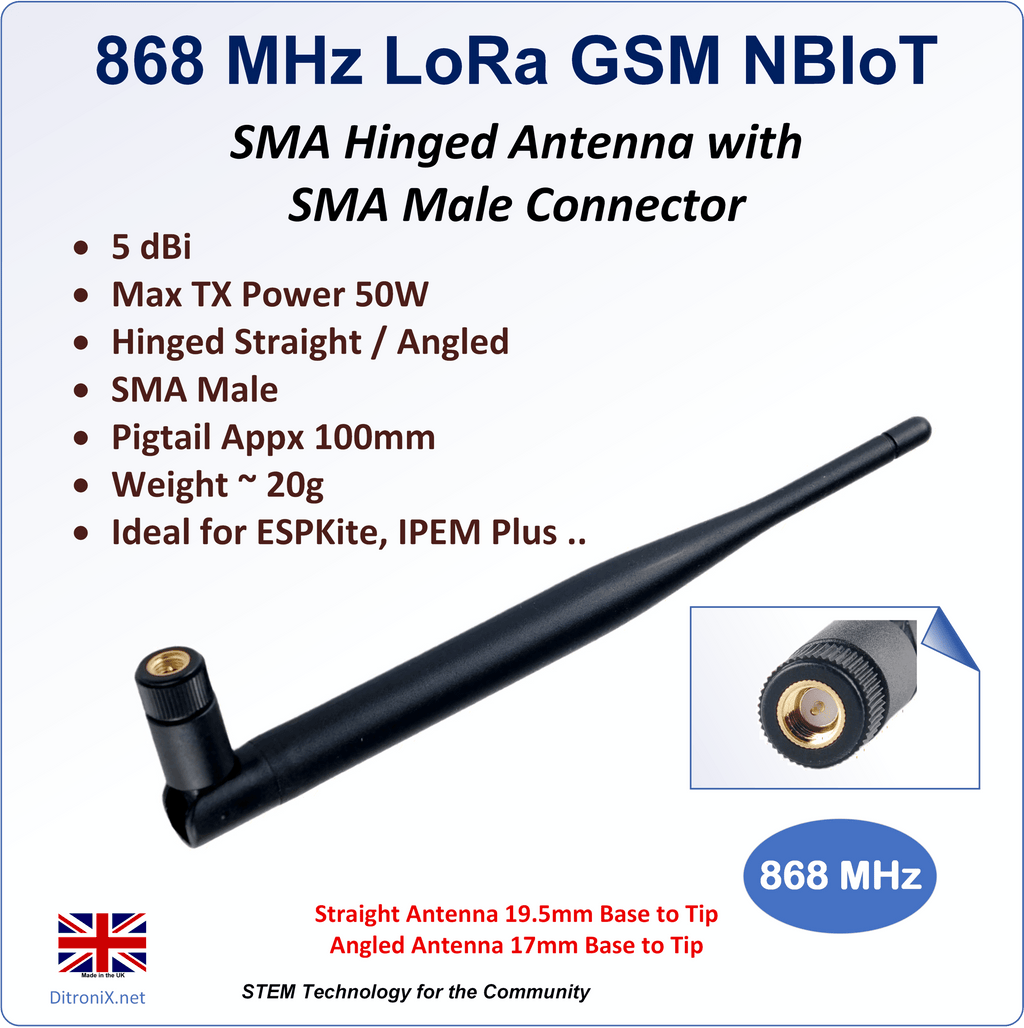

Antenna 868 MHz MHF1 Hinged 5 dBi
£5.75 GBP
Sale price
£5.75 GBP
Regular price
£5.75 GBP
Antenna 848 MHz with IPEX MHF1 to SMA F Pigtail for Bulkhead, Panel or enclosure mounting.

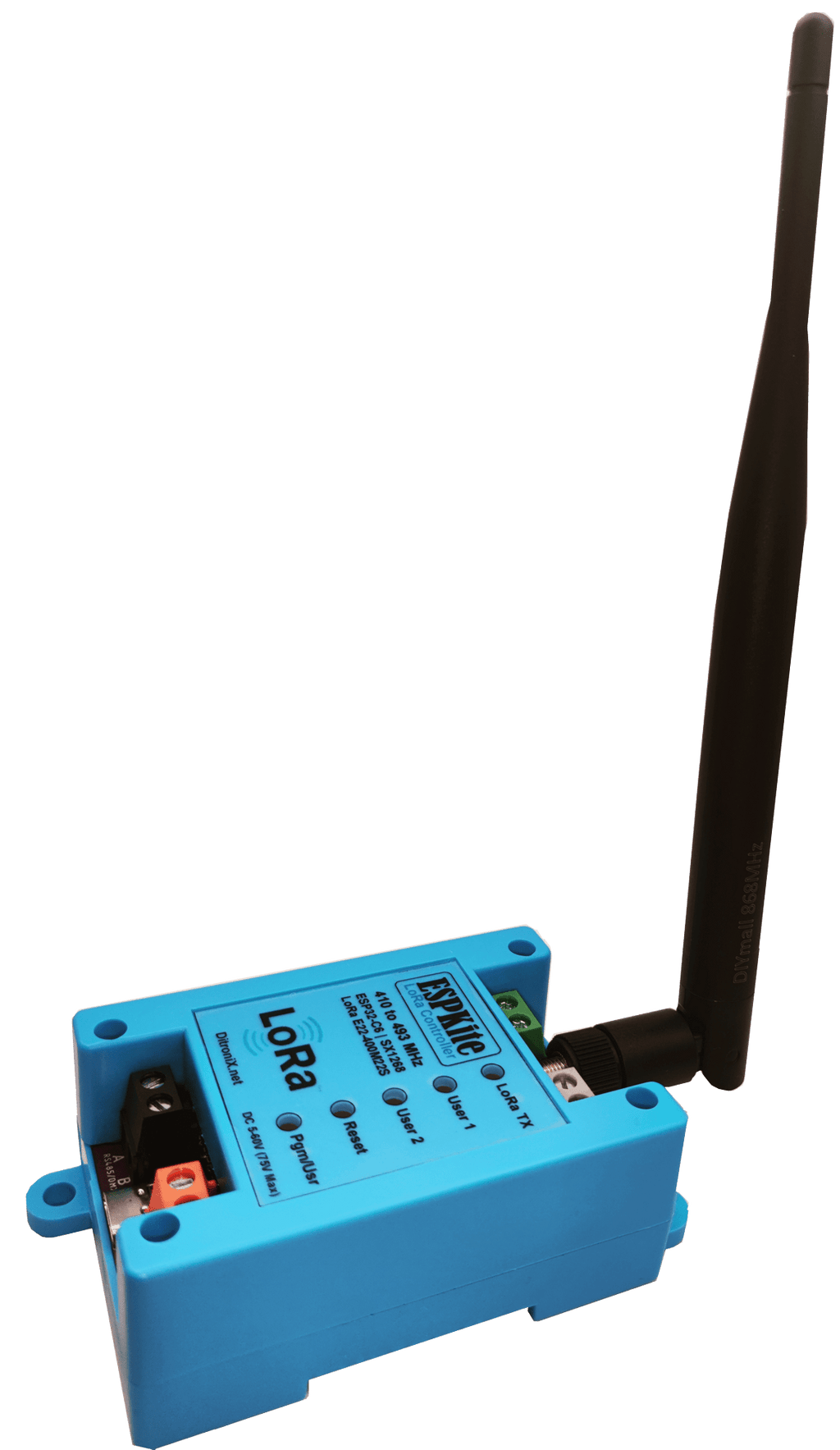

This is a Hinged monopole antenna. Suitable for LoRa devices such as ESPRanger, ESPKnack, ESPKite, IPEM Plus
868 MHz suitable for LoRa, GSM and NB-IOT
Features
Complete IPEX/U.FL MHF1 connector with Pigtail Cable to SMA Female RF connector.
- Antenna Gain: 5 dBi
- Antenna Length: approx. 19.5cm (Straight)
- Antenna Length: approx. 17cm (Angled)
- Antenna SWR: Good and Stable ~1.8:1 @868 MHz (see example plot)
- Antenna Polarization: Vertical when upright
- Antenna Connector: SMA Male
- Pigtail Coax Cable Length: Approx. 100mm
- Pigtail Connectors IPEX/U.FL to SMA Female
- Performance: Reliable Antenna for stable and efficient signal transmission / reception
- Suitable for TX/RX: LoRa, LoRaWAN, GSM, NB-IOT
In the Box
- 868 MHz Antenna Hinged
- IPEX/U.FL Pigtail Cable to SMA Female RF connector
- SMA Mounting Nut and Washer
