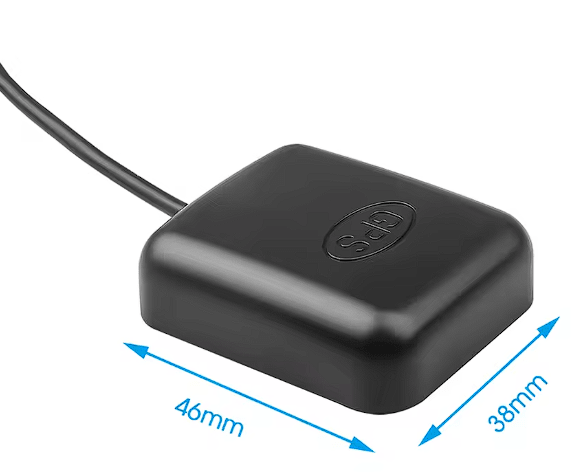

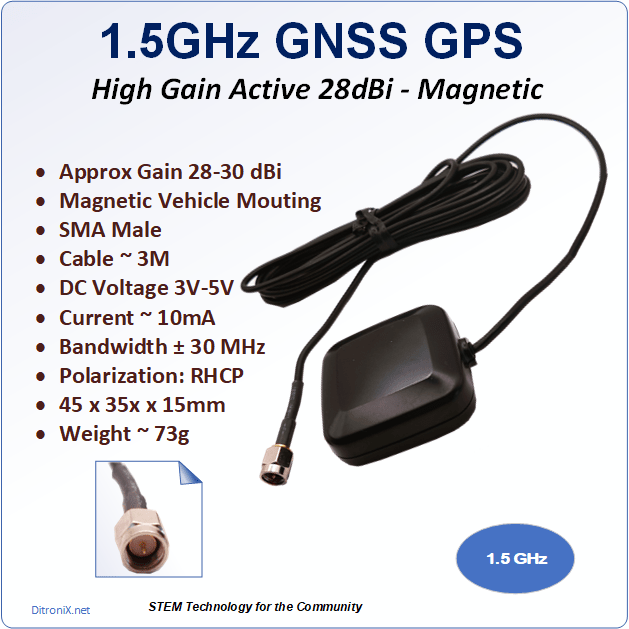

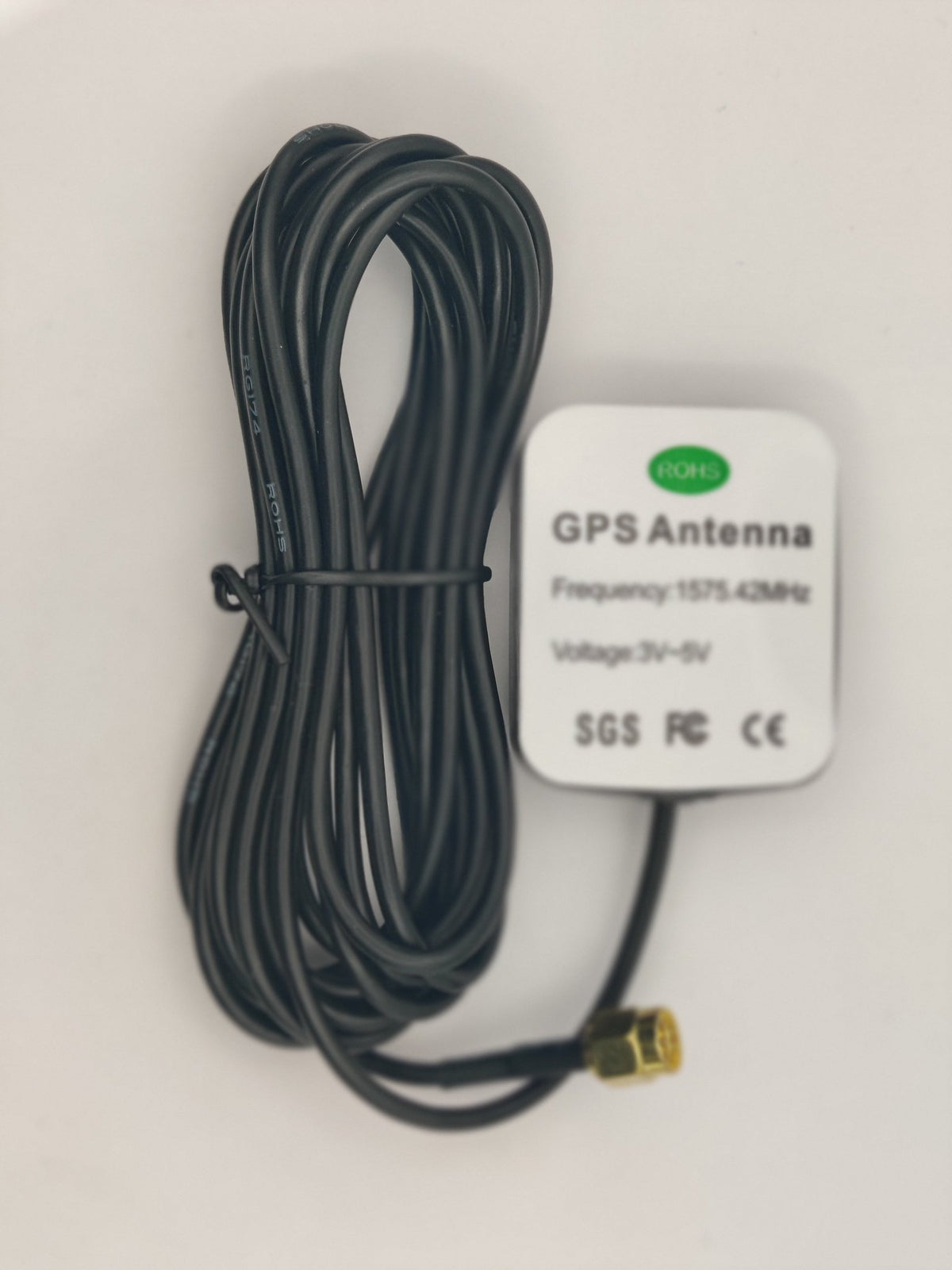

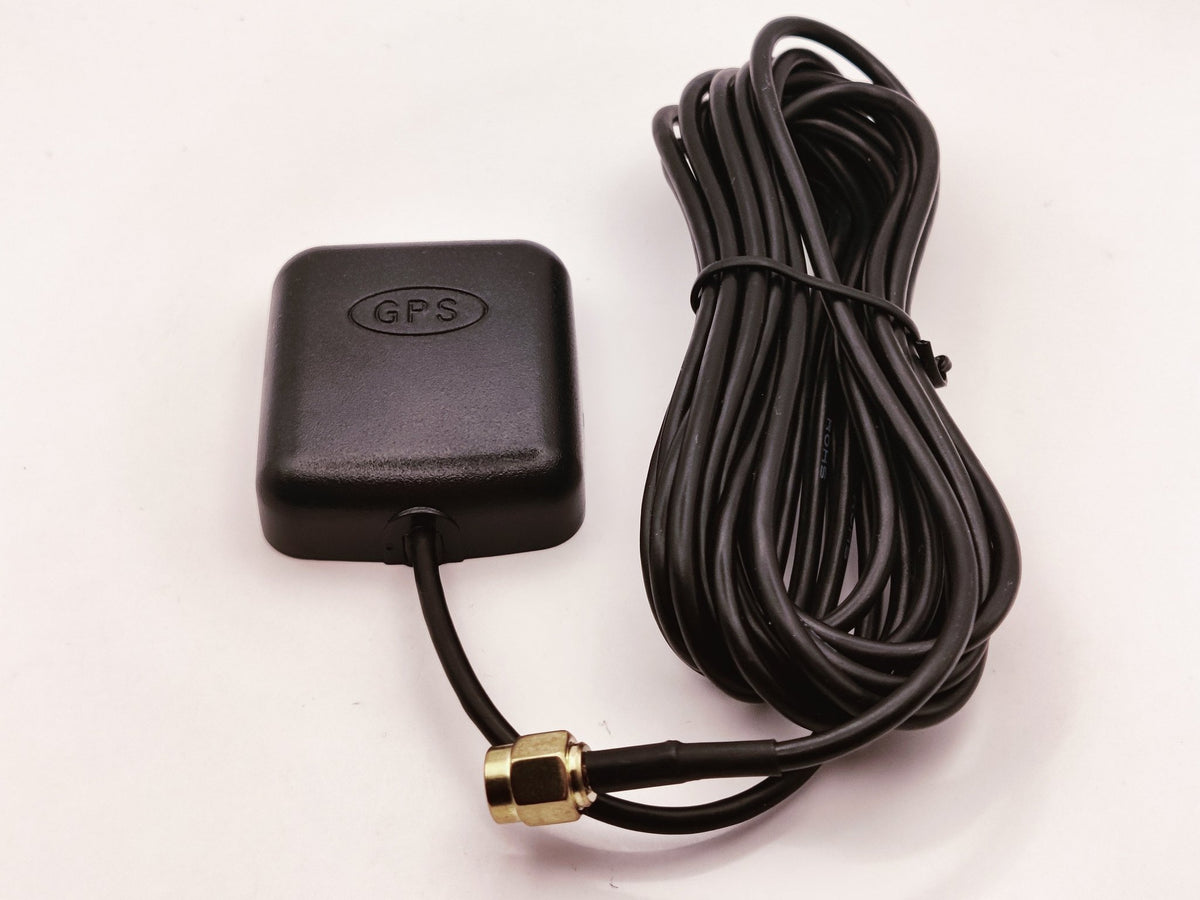

Antenna GNSS GPS High Gain 28dBi Magnetic 3M SMA Male Navigation Car Robot Boat

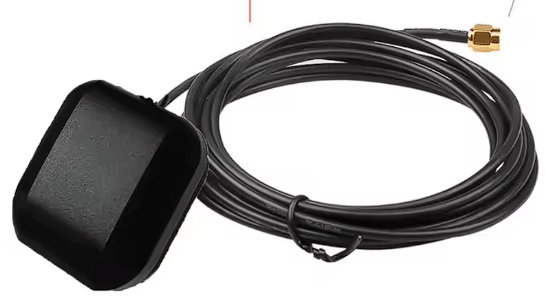

This antenna is a Magnetic GNSS GPS antenna for 1.5GHz, with a 3M coax to SMA Male.

The antenna base includes a built in screened two stage low noise RF preamplifier, complete with filter.  This covering the central frequency of 1575MHZ with ±30 MHz bandwidth.

• Compact Design
• Magnetic Base
• High Performance
• Optimized for 1575.42 MHz
• Right-hand polarization for enhanced signal clarity

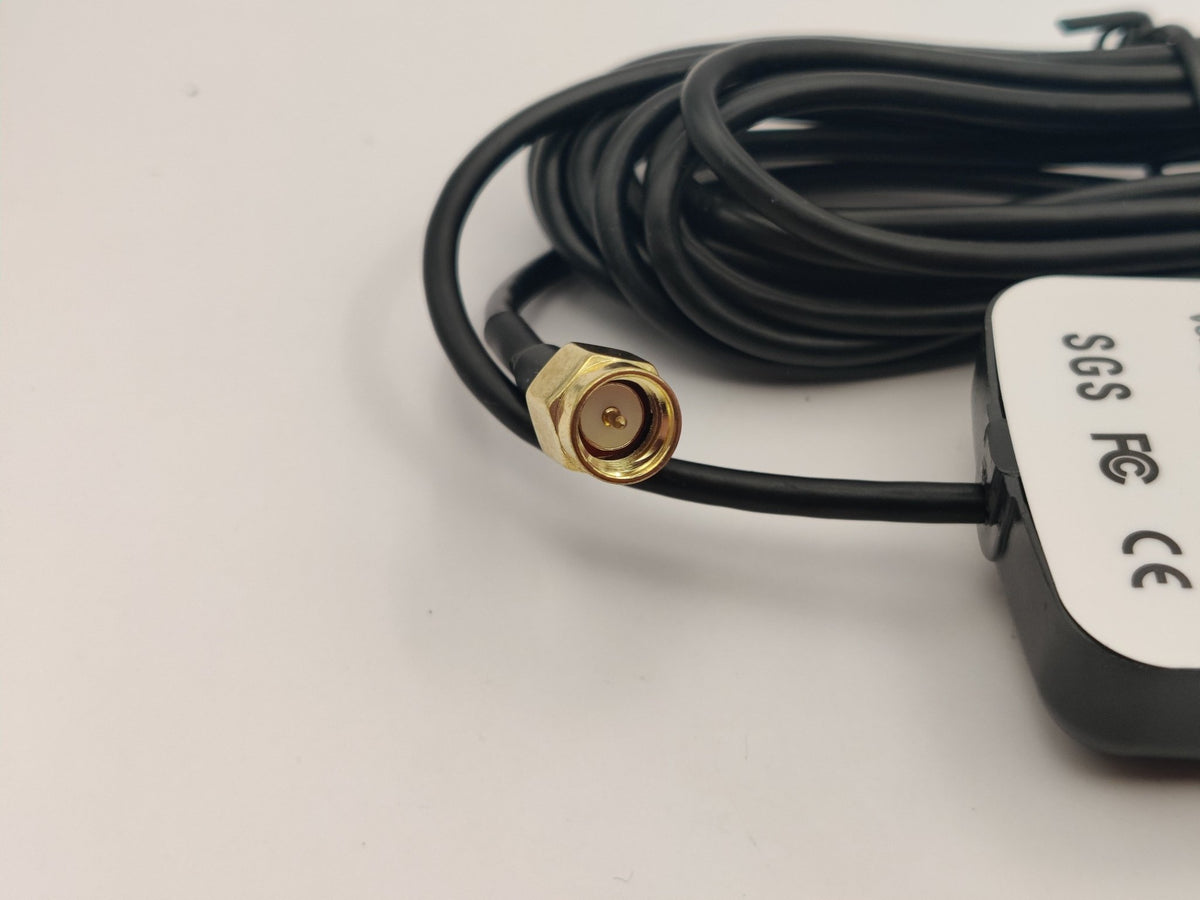

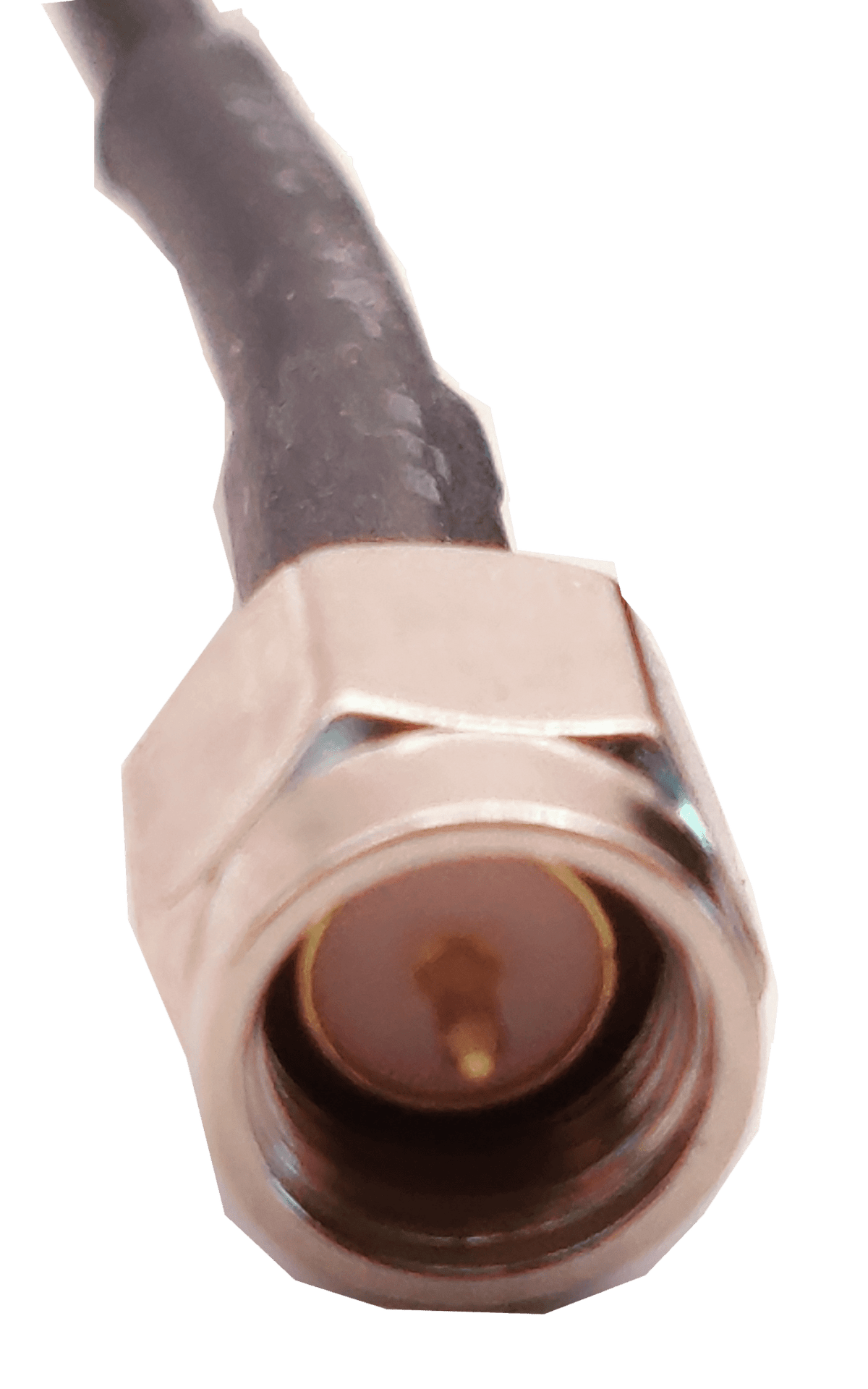

• SMA Male connector
• 3M RG174 Coax
• Power 3V to 5V (Phantom), via the coax.

The active preamplifier power consumption is around 10mA, and operates from 3 to 5V through phantom power, where DC is fed up the coax along with the RF signal.

Boards like ESPRanger ATGM336H GNSS GPS receiver, and NB-IoT, provides the phantom power.

Design may vary very slightly to the photos.
