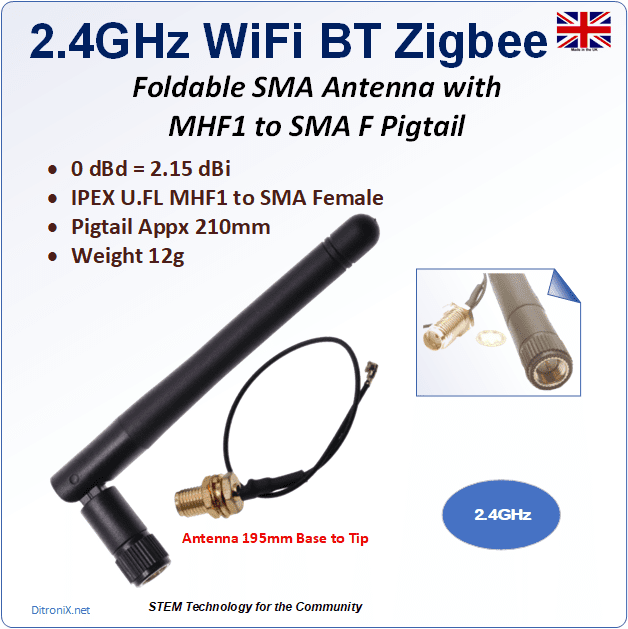

Antenna 2.4GHz MHF1

Original price was: £3.00.Current price is: £2.00. (inc. VAT)

2.4 GHz suitable for WiFi ZigBee BT Bluetooth Foldable Antenna, complete IPEX/U.FL MHF1 connector with Pigtail Cable to SMA Female RF connector.

For Bulkhead, Panel or enclosure mounting.

In stock

SKU: ANT-2.4GHz-MHF1 Categories: , Tags: , , , , , Brand:

Description

The Antenna

Foldable Antenna 2.4G with Pigtail Cable for Bulkhead, Panel or enclosure mounting.

2.4 GHz suitable for WiFi ZigBee BT Bluetooth Foldable Antenna.

Features

Complete IPEX/U.FL MHF1 connector with Pigtail Cable to SMA Female RF connector.

  • Antenna Gain: Unity Gain 0 dBd / 2.5 dBi
  • Antenna Length: approx. 11cm
  • Antenna SWR: Very Good and Stable ~1.2:1 @ 2.4 GHz (see example plots)
  • Antenna Polarization: Vertical when upright
  • Antenna Connector: SMA Male
  • Pigtail Coax Cable Length: 210mm
  • Pigtail Connectors IPEX/U.FL to SMA Female
  • Folding: Antenna folder to allow optimal positioning
  • Performance: Reliable Antenna for stable and efficient signal transmission / reception
  • Suitable for TX/RX: WiFi 2.4GHz, ZigBee, Thread, BT, Bluetooth, BTLE (Vertical Polarization)
  • Can be used for RX: GPS (Horizontal Polarization)

In the Box

  • 2.4 GHz Foldable Antenna
  • IPEX/U.FL Pigtail Cable to SMA Female RF connector
  • SMA Mounting Nut and Washer

Specification

Complete IPEX/U.FL MHF1 connector with Pigtail Cable to SMA Female RF connector.

  • Antenna Gain: Unity Gain 0 dBd / 2.5 dBi
  • Antenna Length: approx. 11cm
  • Antenna SWR: Very Good and Stable ~1.2:1 @ 2.4 GHz (see example plots)
  • Antenna Polarization: Vertical when upright
  • Antenna Connector: SMA Male
  • Pigtail Coax Cable Length: 210mm
  • Pigtail Connectors IPEX/U.FL to SMA Female
  • Folding: Antenna folder to allow optimal positioning
  • Performance: Reliable Antenna for stable and efficient signal transmission / reception
  • Suitable for TX/RX: WiFi 2.4GHz, ZigBee, Thread, BT, Bluetooth, BTLE (Vertical Polarization)
  • Can be used for RX: GPS (Horizontal Polarization)

Additional information

Weight 14 g
Dimensions 110 × 9.8 mm
Country of Manufacture

United Kingdom
HS Code

8529109500
Manufacturer

DitroniX Ltd
