Description
The Antenna

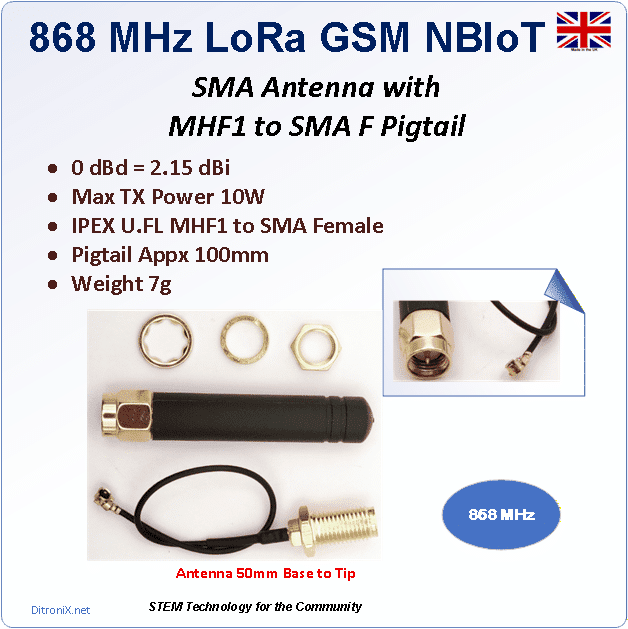

Antenna 848 MHz with IPEX MHF1 to SMA F Pigtail for Bulkhead, Panel or enclosure mounting.
This is a standard monopole antenna. Suitable for LoRa devices such as ESPRanger and ESPKnack
868 MHz suitable for LoRa, GSM and NB-IOT
Features

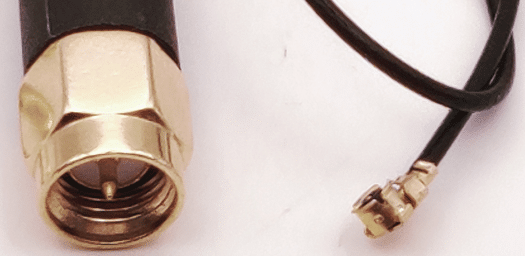

Complete IPEX/U.FL MHF1 connector with Pigtail Cable to SMA Female RF connector.
- Antenna Gain: Unity Gain 0 dBd / 2.5 dBi
- Antenna Length: approx. 5cm

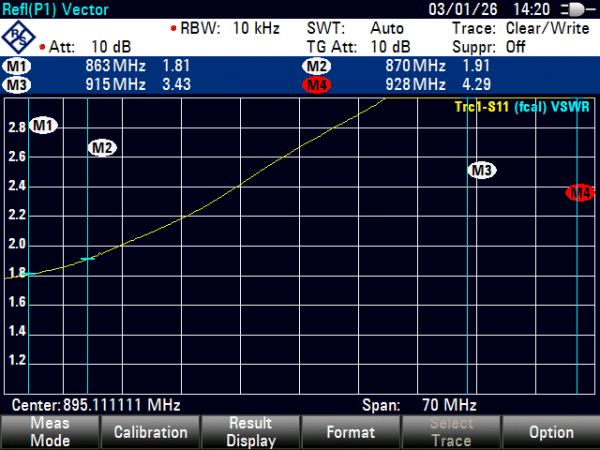

- Antenna SWR: Good and Stable ~1.8:1 @868 MHz (see example plot)
- Antenna Polarization: Vertical when upright
- Antenna Connector: SMA Male
- Pigtail Coax Cable Length: Approx. 100mm
- Pigtail Connectors IPEX/U.FL to SMA Female
- Performance: Reliable Antenna for stable and efficient signal transmission / reception
- Suitable for TX/RX: LoRa, LoRaWAN, GSM, NB-IOT
In the Box
- 868 MHz Antenna
- IPEX/U.FL Pigtail Cable to SMA Female RF connector
- SMA Mounting Nut and Washer
Specification
Complete IPEX/U.FL MHF1 connector with Pigtail Cable to SMA Female RF connector.
- Antenna Gain: Unity Gain 0 dBd / 2.5 dBi
- Antenna Length: approx. 11cm
- Antenna SWR: Very Good and Stable ~1.2:1 @ 2.4 GHz (see example plots)
- Antenna Polarization: Vertical when upright
- Antenna Connector: SMA Male
- Pigtail Coax Cable Length: 210mm
- Pigtail Connectors IPEX/U.FL to SMA Female
- Folding: Antenna folder to allow optimal positioning
- Performance: Reliable Antenna for stable and efficient signal transmission / reception
- Suitable for TX/RX: WiFi 2.4GHz, ZigBee, Thread, BT, Bluetooth, BTLE (Vertical Polarization)
- Can be used for RX: GPS (Horizontal Polarization)
