Antenna GNSS GPS Square Patch Active

Original price was: £5.75.Current price is: £4.00. (inc. VAT)

This antenna is a compact GNSS GPS antenna for 1.5GHz.

The high gain ceramic antenna base includes a built in screened two stage low noise RF preamplifier, complete with filter.

This covering the central frequency of 1575MHZ with ±30 MHz bandwidth.

Available on back-order

SKU: ANT-GNSS-25x25 Categories: , , Tags: , , , , , , Brand:

Description

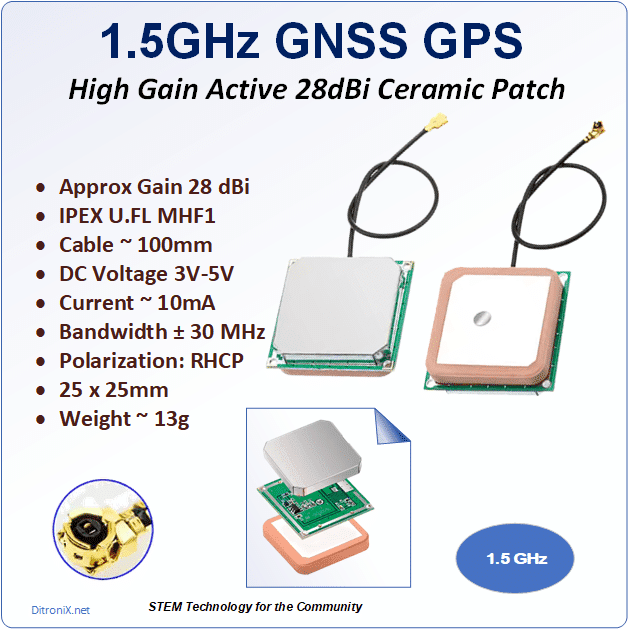

This antenna is a compact GNSS GPS antenna for 1.5GHz, with a pigtail coax to IPEM U.FL MHF1 Female connector.

The high gain ceramic antenna base includes a built in screened two stage low noise RF preamplifier, complete with filter.  This covering the central frequency of 1575MHZ with ±30 MHz bandwidth.

With a size of only 25mm square, this antenna is ideal for projects which have a confined space, allowing for an overall compact design.

The active preamplifier power consumption is around 10mA, and operates from 3 to 5V through phantom power, where DC is fed up the coax along with the RF signal.

The ESPRanger ATGM336H GNSS GPS receiver provides the power.

Specification

  • Central frequency: 1575 MHz
  • Bandwidth: ±30 MHz
  • High Antenna Gain ~ Typical 28 dBi
  • Antenna Polarization: RHCP (Circular)
  • Built in active two stage low noise amplifier and filter
  • VSWR: ＜1.5
  • Impedance: 50Ω
  • Ceramic Patch Antenna
  • Cable type: 0.81mm RG1.13
  • Coax Length: 10cm
  • Coax: High Quality RG1.13, which is bend resistant and durable, with a high-density woven protective layer, oxygen-free fast and stable transmission.
  • Connector type: IPEX U.FL MHF1
  • DC Voltage: 3 to 5V
  • Power Consumption: 10mA
  • Working Temperature: -40℃~+105℃
  • Size: 25 x 25 x 6.2 mm
  • Weight: ~13g

Additional information

Weight 13 g
Country of Manufacture

United Kingdom
HS Code

8534009000
Manufacturer

DitroniX Ltd
