Name: Antenna GNSS GPS Square Patch Active
Brand: DitroniX
SKU: ANT-GNSS-25x25
Availability: BackOrder

Antenna GNSS GPS Square Patch Active

(inc. VAT)

This antenna is a compact GNSS GPS antenna for 1.5GHz.

The high gain ceramic antenna base includes a built in screened two stage low noise RF preamplifier, complete with filter.

This covering the central frequency of 1575MHZ with ±30 MHz bandwidth.

Available on back-order

Description

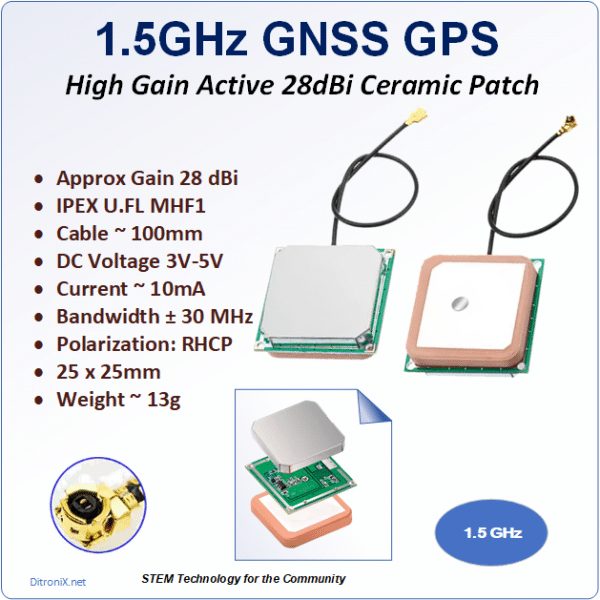

This antenna is a compact GNSS GPS antenna for 1.5GHz, with a pigtail coax to IPEM U.FL MHF1 Female connector.

The high gain ceramic antenna base includes a built in screened two stage low noise RF preamplifier, complete with filter. This covering the central frequency of 1575MHZ with ±30 MHz bandwidth.

With a size of only 25mm square, this antenna is ideal for projects which have a confined space, allowing for an overall compact design.

The active preamplifier power consumption is around 10mA, and operates from 3 to 5V through phantom power, where DC is fed up the coax along with the RF signal.

The ESPRanger ATGM336H GNSS GPS receiver provides the power.

Specification

Central frequency: 1575 MHz
Bandwidth: ±30 MHz
High Antenna Gain ~ Typical 28 dBi
Antenna Polarization: RHCP (Circular)
Built in active two stage low noise amplifier and filter
VSWR: ＜1.5
Impedance: 50Ω
Ceramic Patch Antenna
Cable type: 0.81mm RG1.13
Coax Length: 10cm
Coax: High Quality RG1.13, which is bend resistant and durable, with a high-density woven protective layer, oxygen-free fast and stable transmission.
Connector type: IPEX U.FL MHF1
DC Voltage: 3 to 5V
Power Consumption: 10mA
Working Temperature: -40℃~+105℃
Size: 25 x 25 x 6.2 mm
Weight: ~13g
