  • ESPKite | ESP32-C6 E22-900M22S SX1262 LoRa RS485 5-60V Relay Output

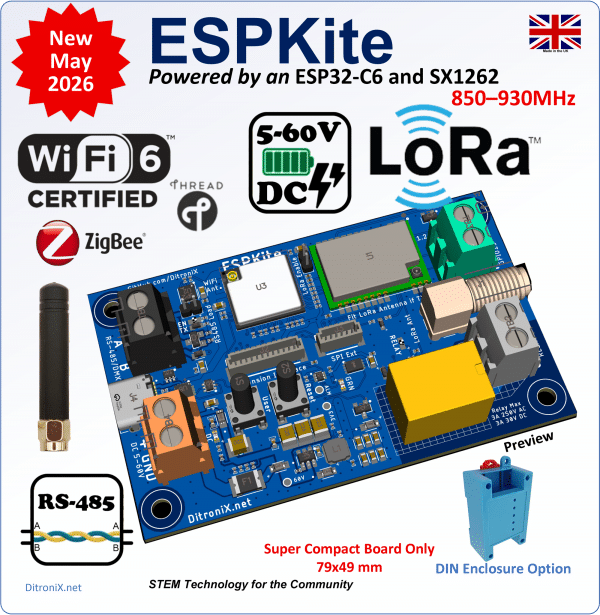

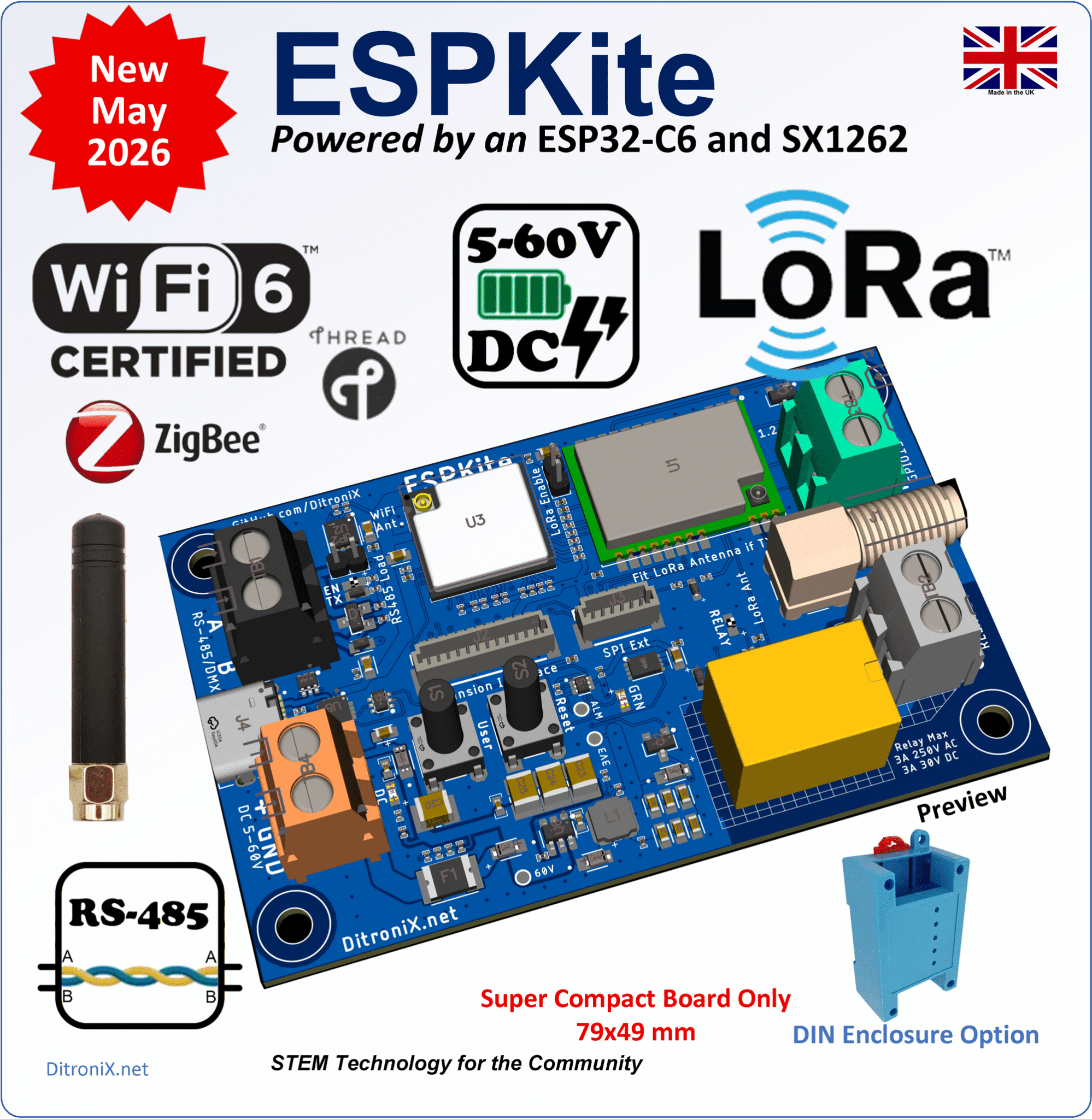

ESPKite | ESP32-C6 E22-900M22S SX1262 LoRa RS485 5-60V Relay Output

Original price was: £39.00.Current price is: £36.00. (inc. VAT)

ESPKite is a compact, feature rich, SDK board with a range of IoT technologies.

  • Espressif ESP32-C6 MCU (WiFi 2.4GHz BT Zigbee Thread)
  • LoRa (EByte E22-900M22S with Semtech SX1262), module covering 850 MHz through to 930 MHz
  • SMA Female (LoRa Antenna Connector)
  • RS485 Interface (RS-485 / DMX)
  • Relay (NO 3A 30VDC 250VAC)

Board and Antenna Only

Available on back-order

SKU: ESPKite E22-900M22S (Board/Ant) Categories: , , Tags: , , , , , , , , , , , , , , , , , , , Brand:

Description

ESPKite is a compact, feature rich, SDK board with a range of IoT technologies.

  • Espressif ESP32-C6 MCU (WiFi 2.4GHz BT Zigbee Thread)
  • LoRa (EByte E22-900M22S with Semtech SX1262), module covering 850 MHz through to 930 MHz
  • SMA Female (LoRa Antenna Connector)
  • RS485 Interface (RS-485 / DMX)
  • Relay (NO 3A 30VDC 250VAC)
  • GPIO
  • Internal High Voltage SMPS (Power directly from 5-60V DC supply).
  • Internal Expansion Ports (I2C and SPI)
  • Compact board (77mm x 49mm)
  • 4 x Terminal Blocks
  • Type C UART / 5V Power
  • DIN Enclosure Mountable

Includes

  • 1 x ESPKite Board (Fully Assembled and Tested)

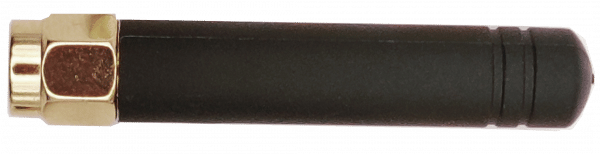

  • 1 x 868MHz Compact Antenna (SMA)
  • 2 x Jumpers (RS485/TX Enable)

Optional

  • DIN Enclosure (ABS 82*54*32mm)
  • 12W and 6W Header Looms



GitHub Information

Specification

Specification information maybe found in the DitroniX GitHub Repositories.

Wiki Pages

Board Configuration

Further configuration information maybe found in the DitroniX GitHub Repositories.

Wiki Pages

Additional information

Weight 50 g
Country of Manufacture

United Kingdom
HS Code

8534009000
Manufacturer

DitroniX Ltd

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Links

 GitHub/DitroniX

 X.com/DitroniX

 YouTube.com/@DitroniX

 LinkedIn.com/in/g8puo/

 hackster.io/DitroniX

 Kickstarter

 Instagram.com/DitroniX.iot

Wiki

Further product information maybe found in the DitroniX GitHub Repositories.

https://github.com/DitroniX/ESPKite-ESP32-C6-SX1262-LoRa-RS485-60V-Relay

Wiki Pages

STEM

All boards are provided with a view to Supporting  STEM Learning

Life is one long exciting learning curve, help others by setting the seed to knowledge.

GitHub

Further Product information maybe found in the DitroniX GitHub Repositories.

Each separate board repository includes:

  • General Information
    • Datasheets
    • Graphics
    • Hardware Information
    • Schematics
  • Firmware and Code Examples
  • Wiki pages
  • Discussion Forums
  • Certification



GitHub Home
