Description
What is PESB?

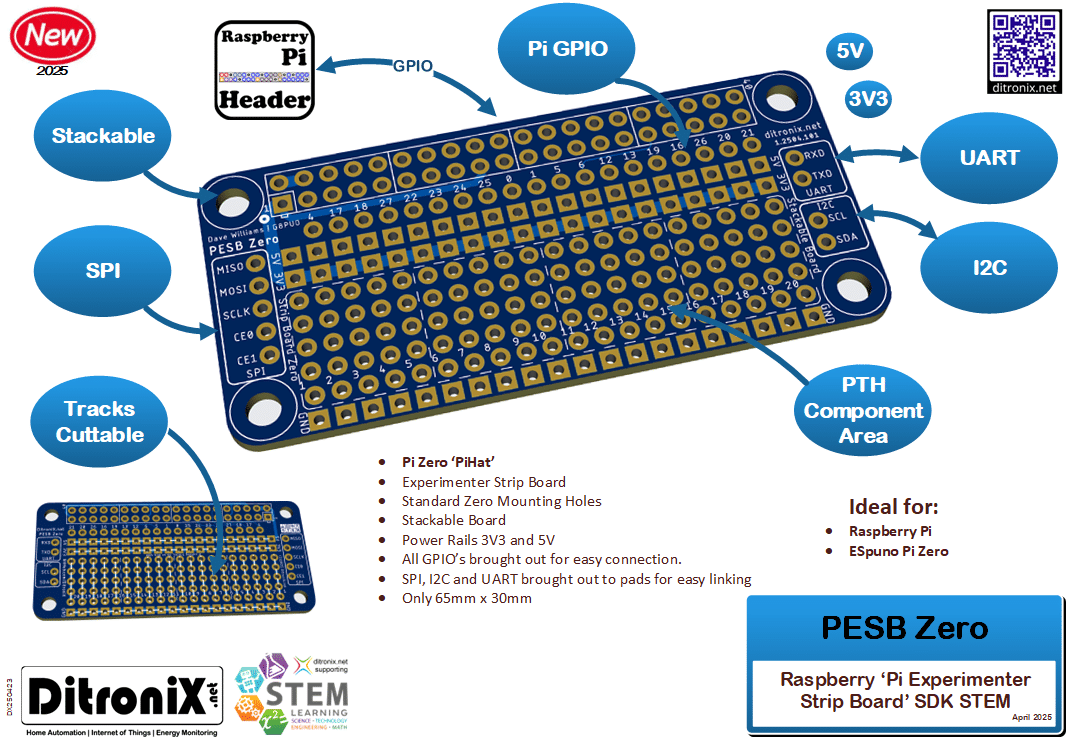

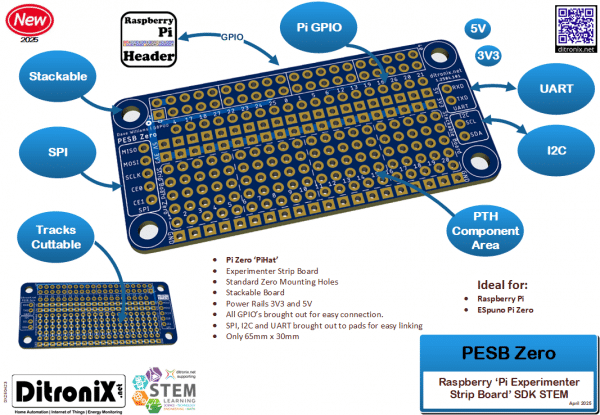

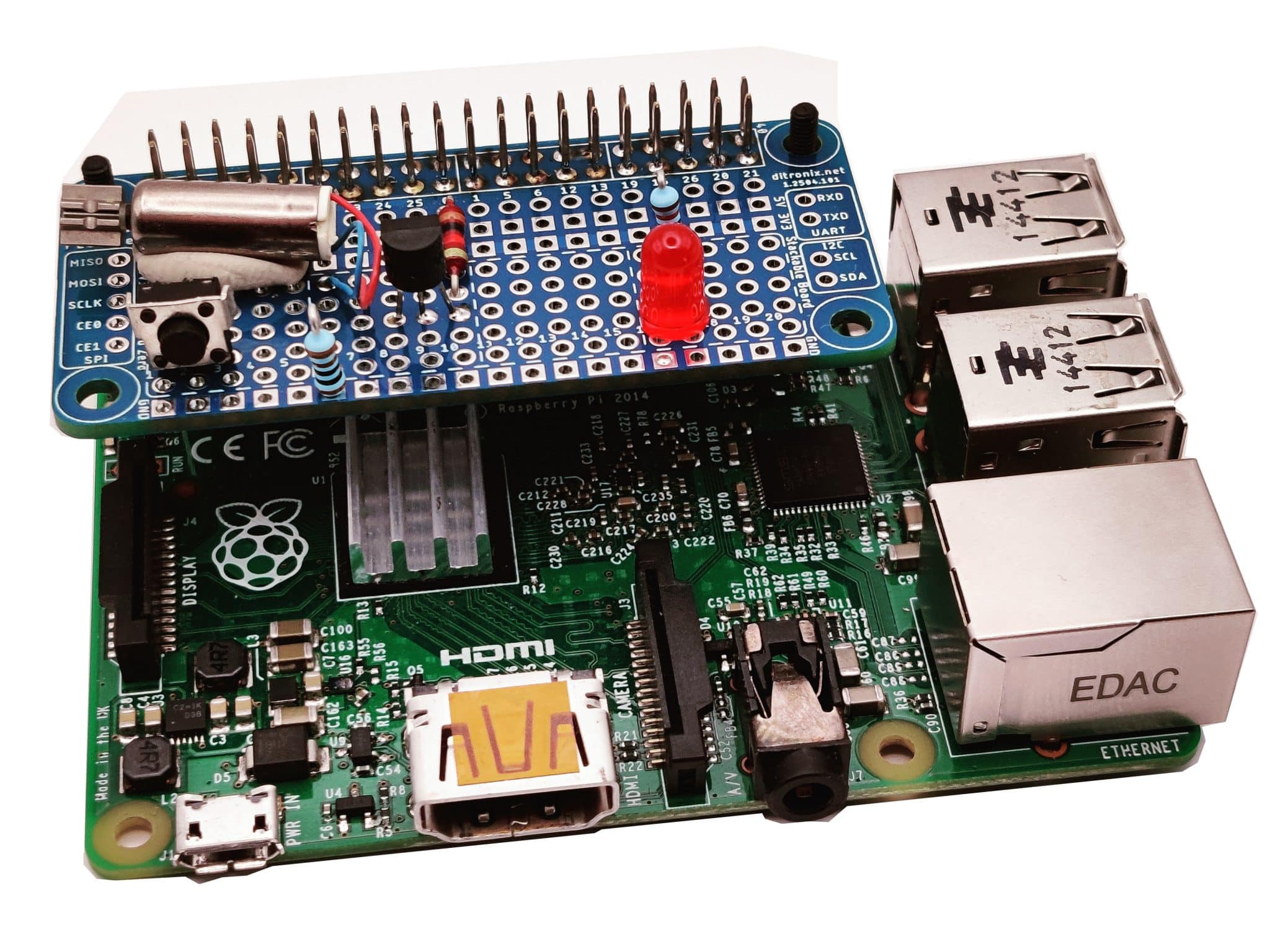

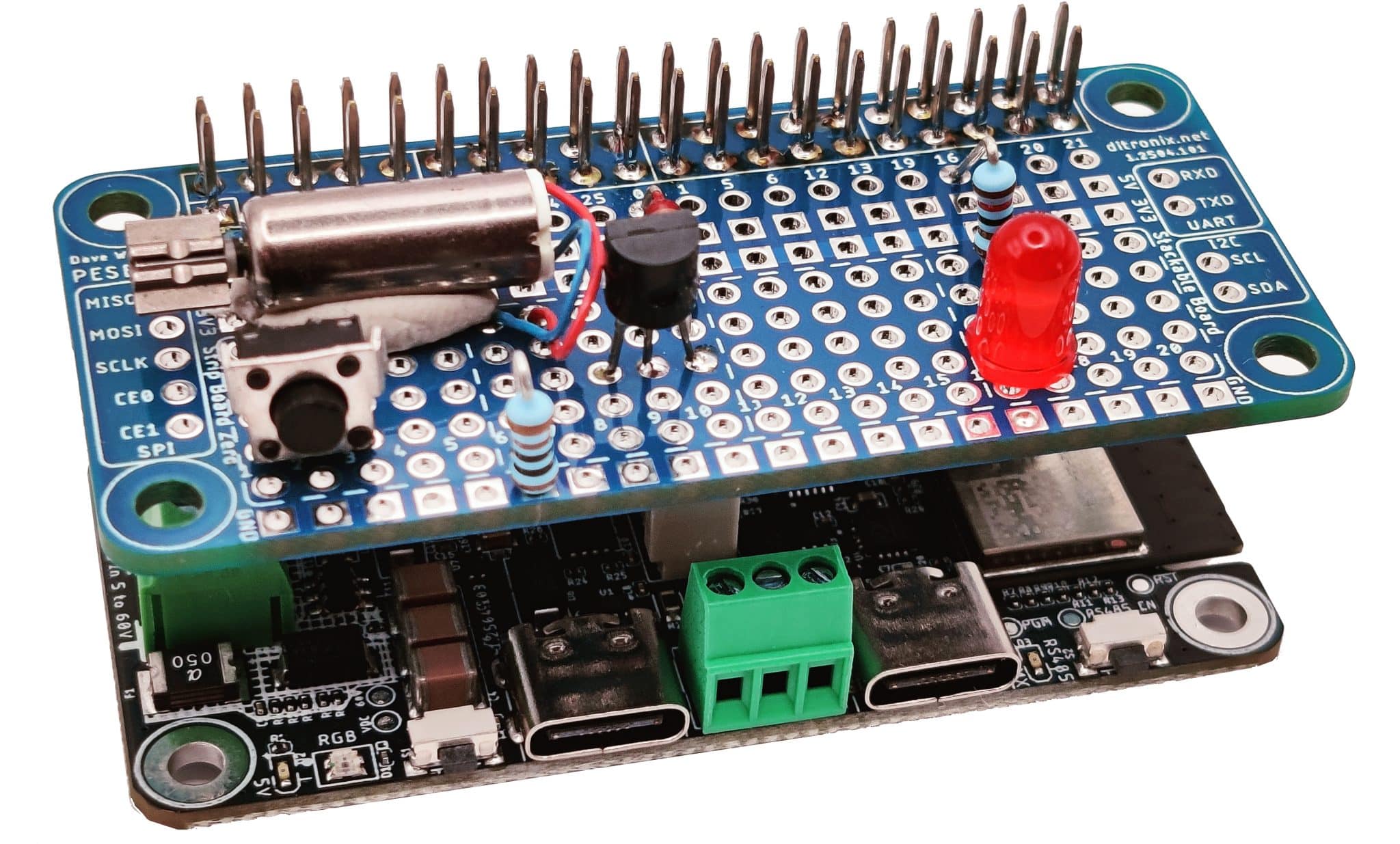

PESB Raspberry Pi GPIO Experimenter Strip Board STEM Maker Break-Out PCB Proto
Designed to easily expand small quick R&D projects, or experimenting, this compact Pi Experimenters Strip Board, is absolutely ideal!

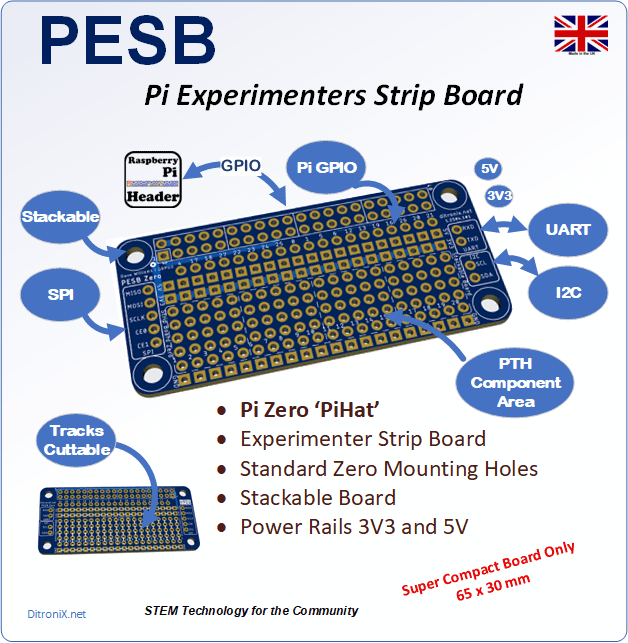

Features
- Compact size of the Pi Zero, 65mm x 30mm
- Standard mounting holes
- Stackable
- Power Rails, both 3V3 and 5V, for easy connection
- All GPIOs conveniently brought out to a pad for easy PTH (or SMD), use
- SPI, I2C and UART brought out to pads for easy linking
Vide0

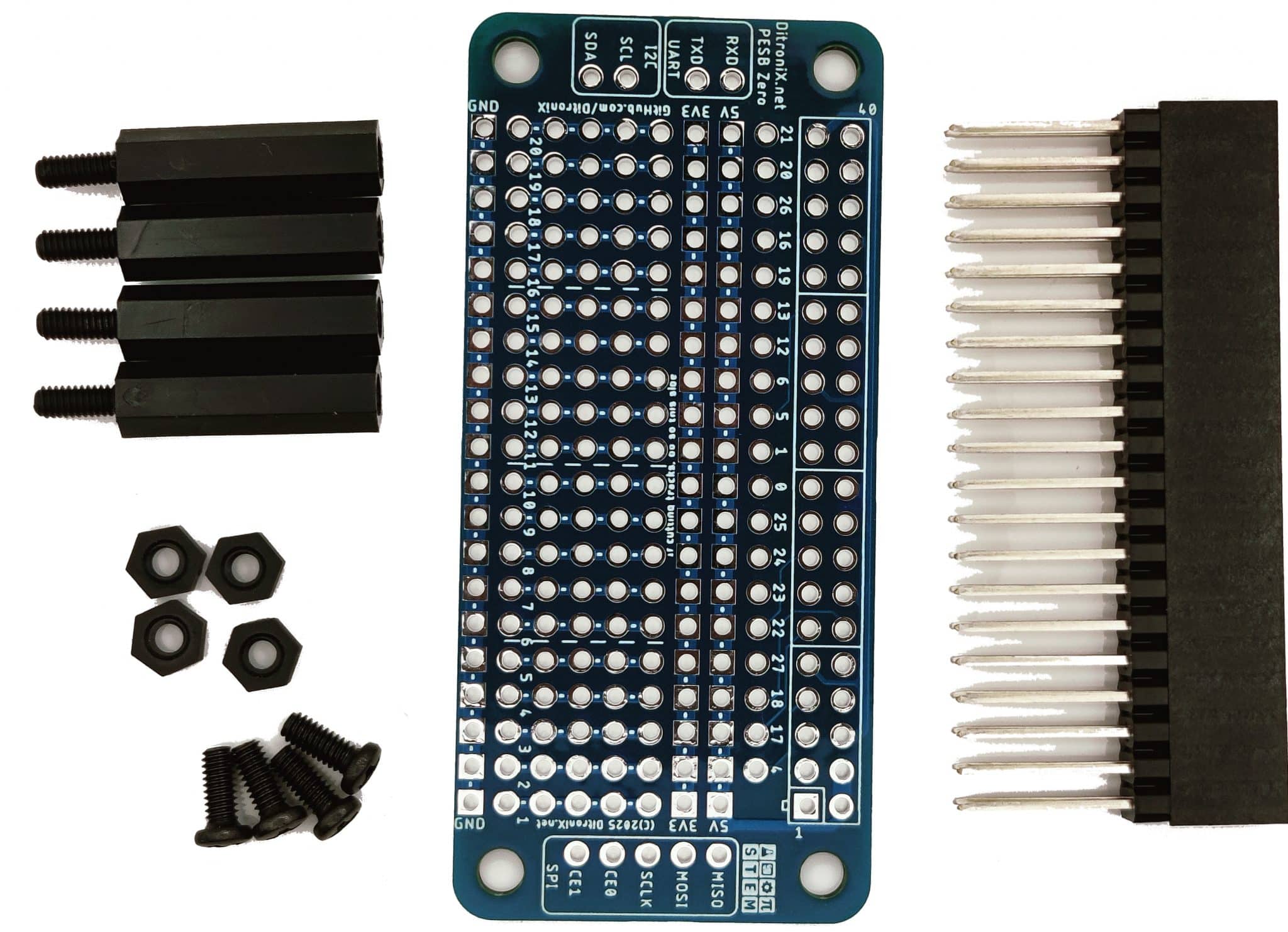

In The Box
- 1 x PESB Zero – Raspberry Pi GPIO Break-Out Strip Board

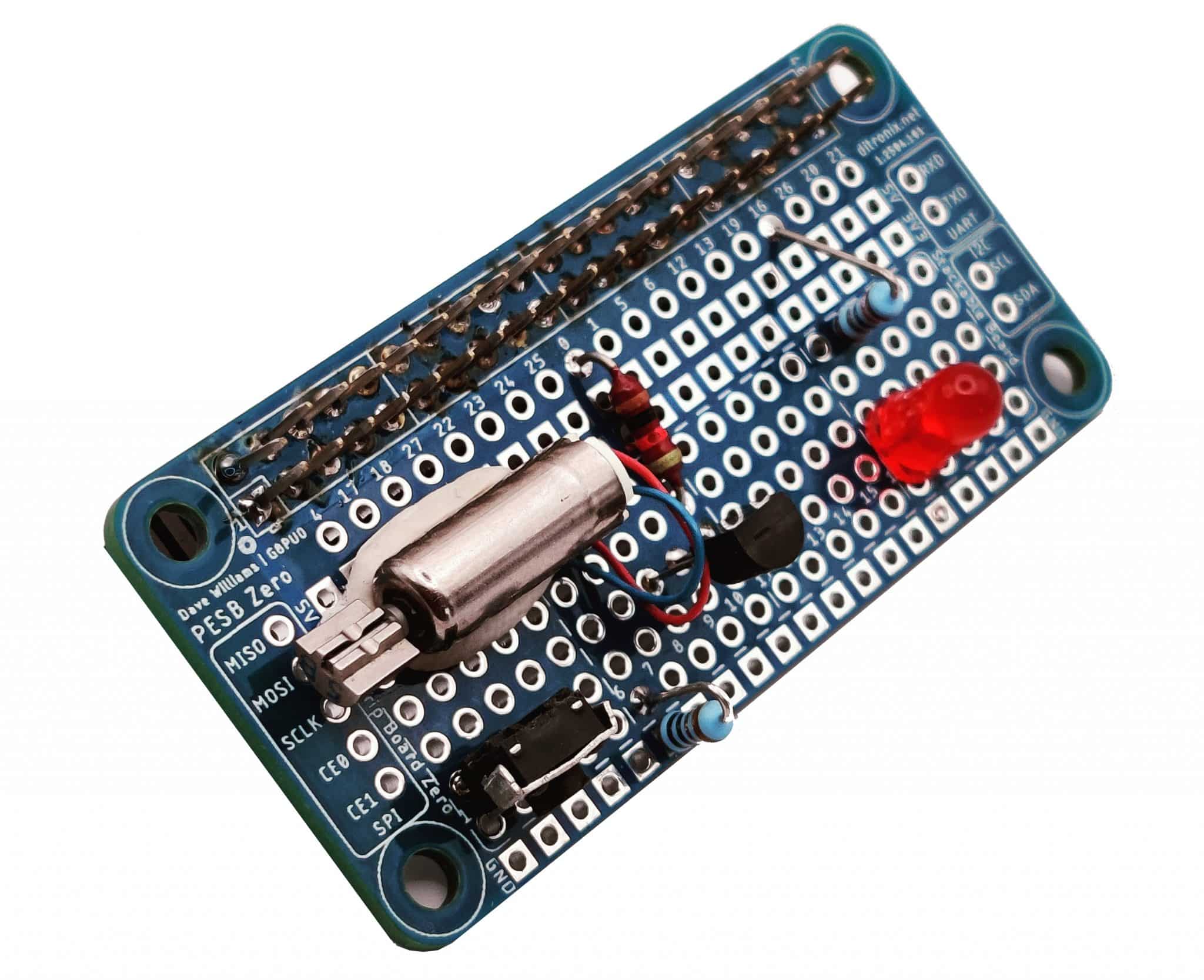

- Just needs a super project and a drop of solder
- 1 x Raspberry Pi 40 Pin Stacker Header, with standoff, screws and nuts.
Available Separately
- Spare Pi 40 Pin (2×40) Stackable Header Connector (with spacer and 2.5mm bolts)
