Name: PGEZ
Brand: DitroniX
SKU: PGEZ
Availability: InStock

Description

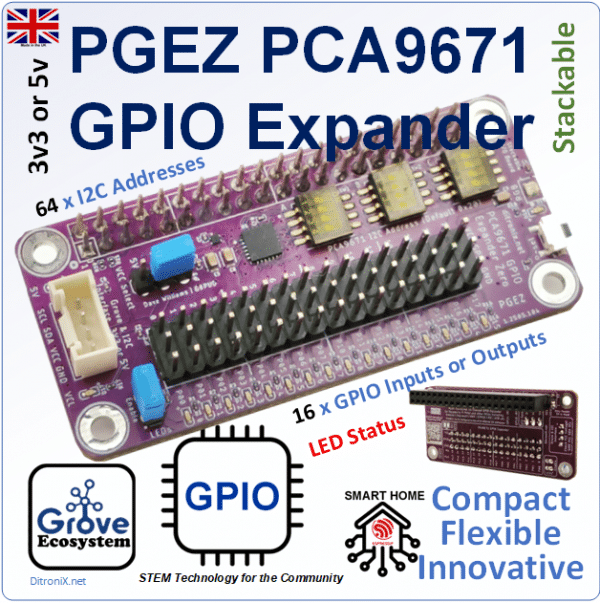

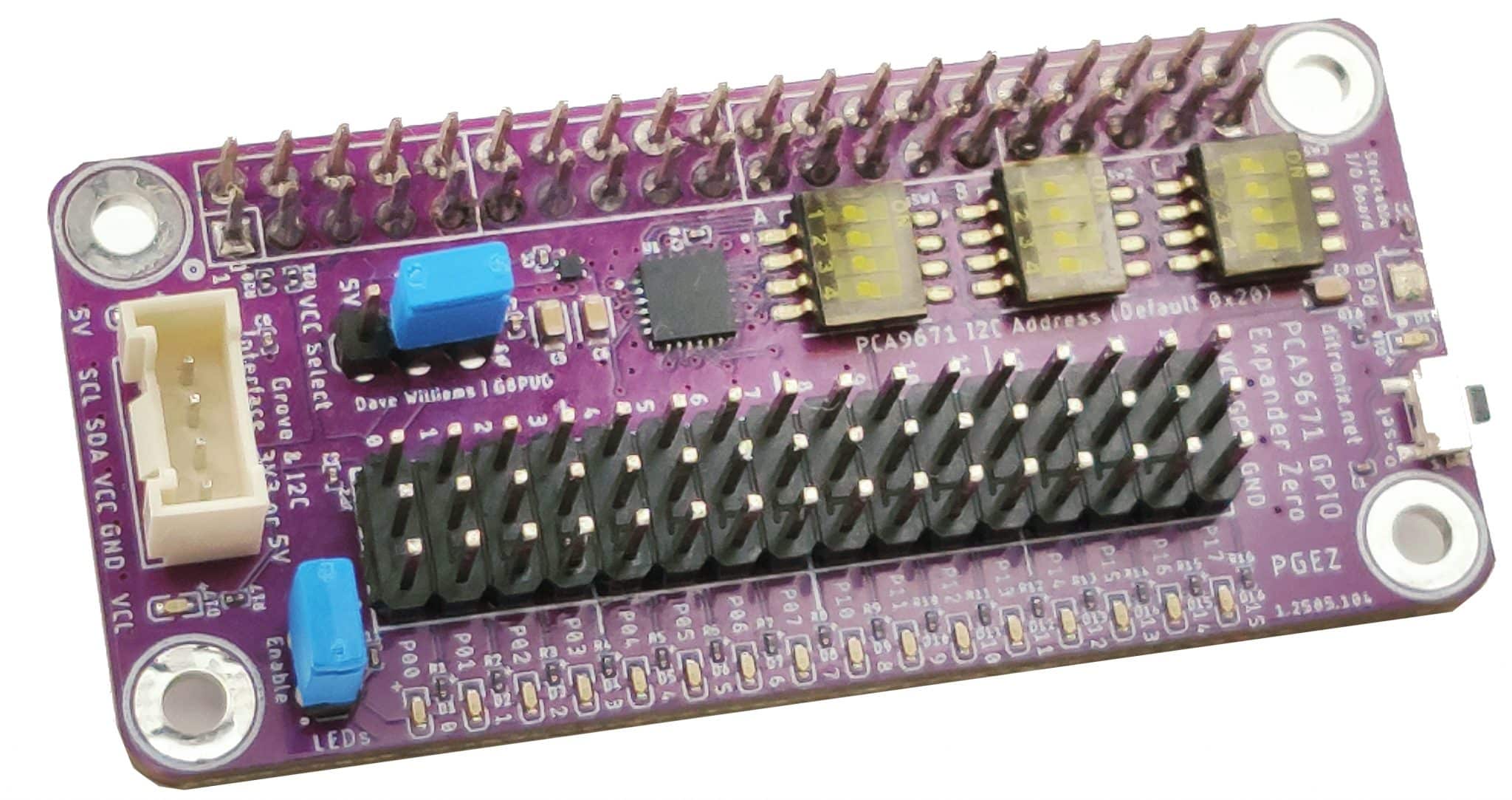

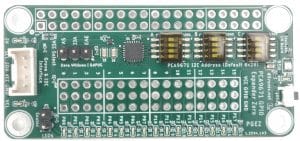

PGEZ Zero is a STEM Maker and Developer SDK board, based on an PCA9671 GPIO Expander wrapped in a compact mechanical Pi Zero form.

What is PGEZ?

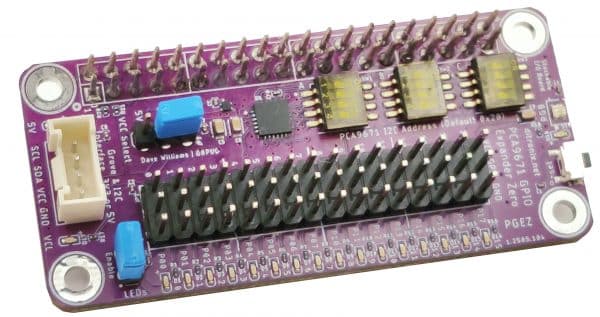

PGEZ Zero is a new STEM Maker and Developer SDK board, based on an PCA9671 GPIO Expander, wrapped in a compact mechanical Pi Zero form.

PGEZ Zero is ideal for:

Educational and Classroom projects.

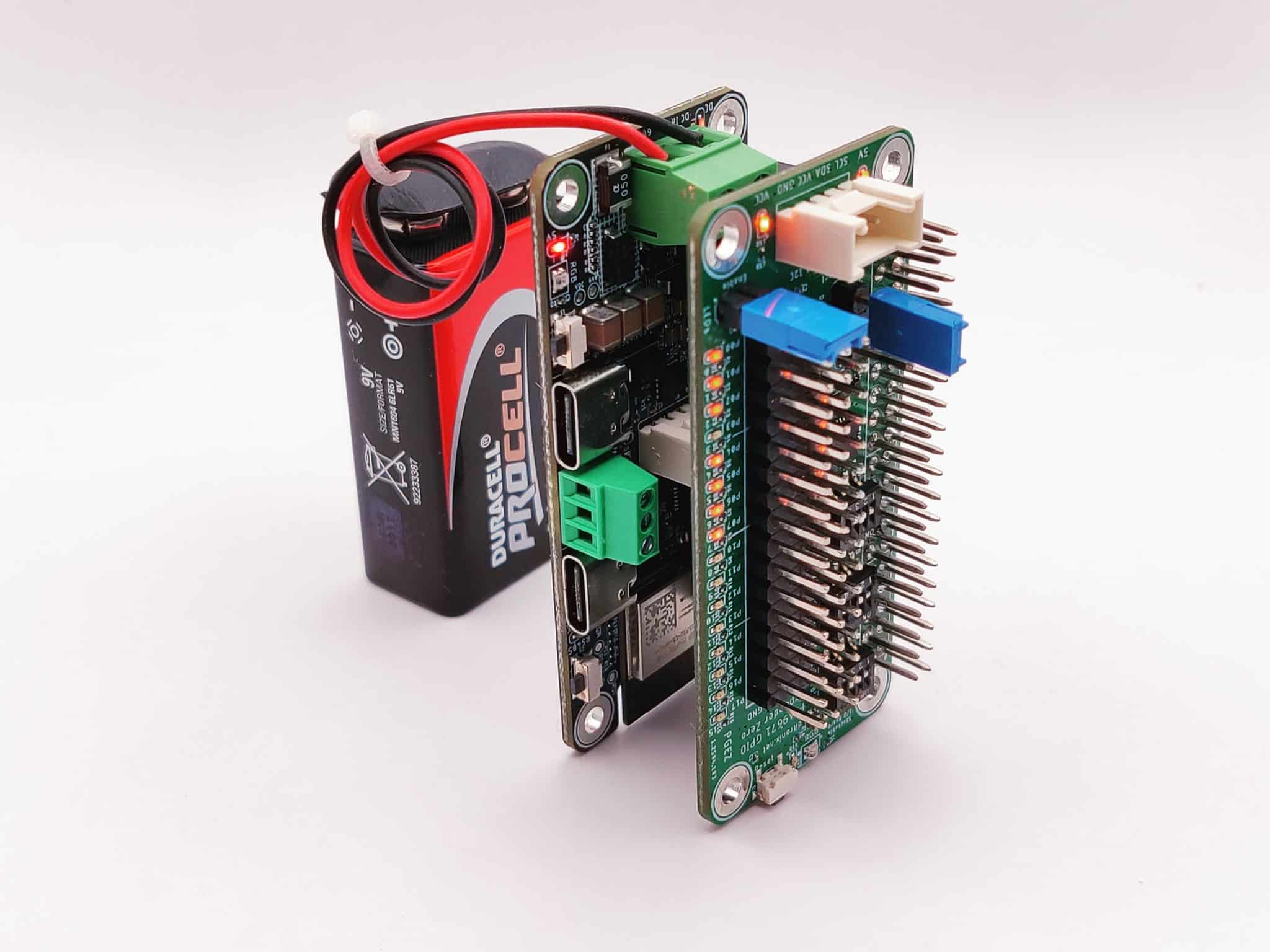

Battery powered projects such as Robotics, Drones, Cars and Vehicles, Boats and University Projects.
Farming and Agricultural Projects.
Industrial applications, Test Systems and Development

Featured

The GPEZ Zero has been featured on, and provides a range of information: youtube.com/watch?v=chLIlq1uky4

Stackable Design Features

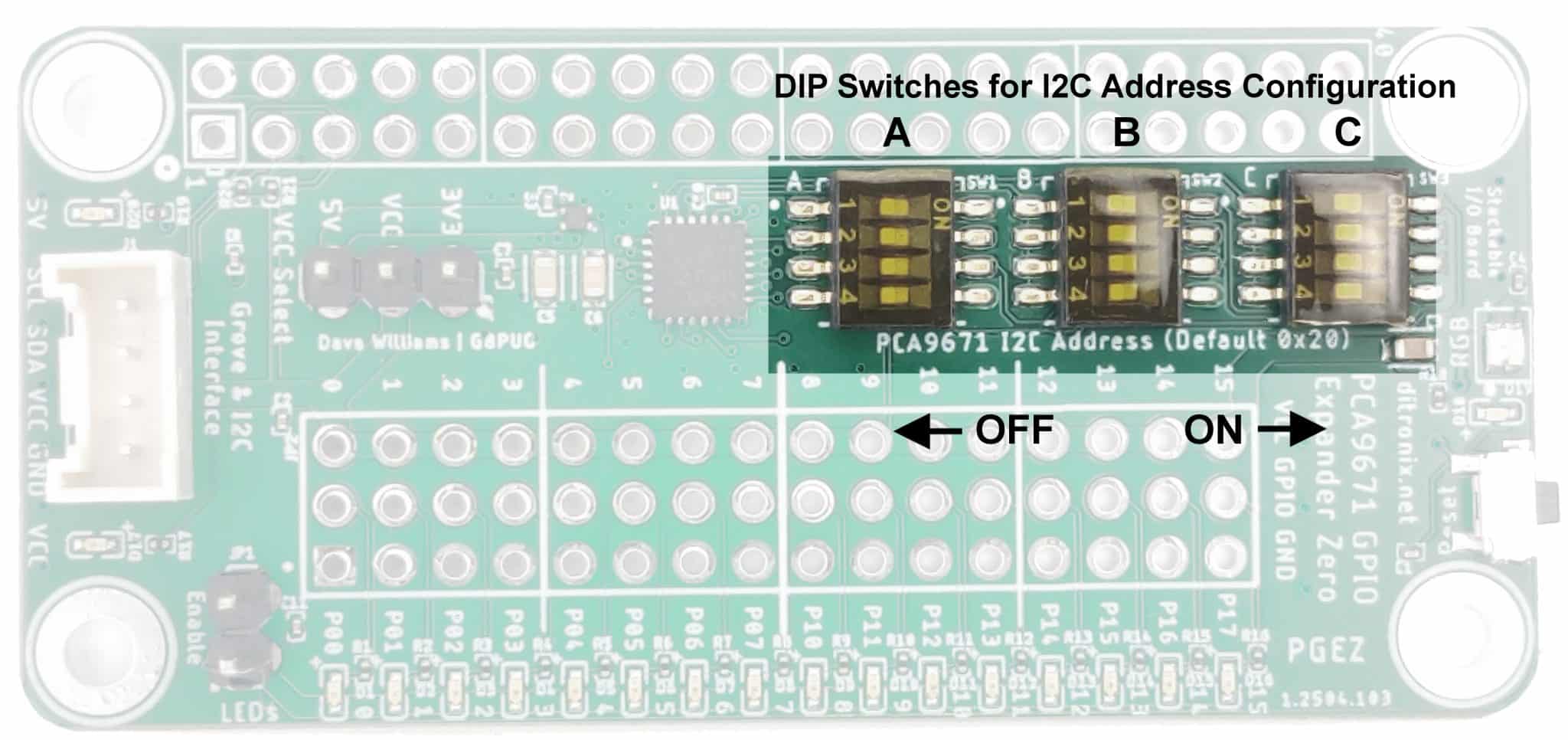

PGEZ Zero has been design to be stackable. In fact, you could in theory stack 64 x PGEZ boards, each with its own I2C address, selectable using the provided DIP Switches.

Interfacing

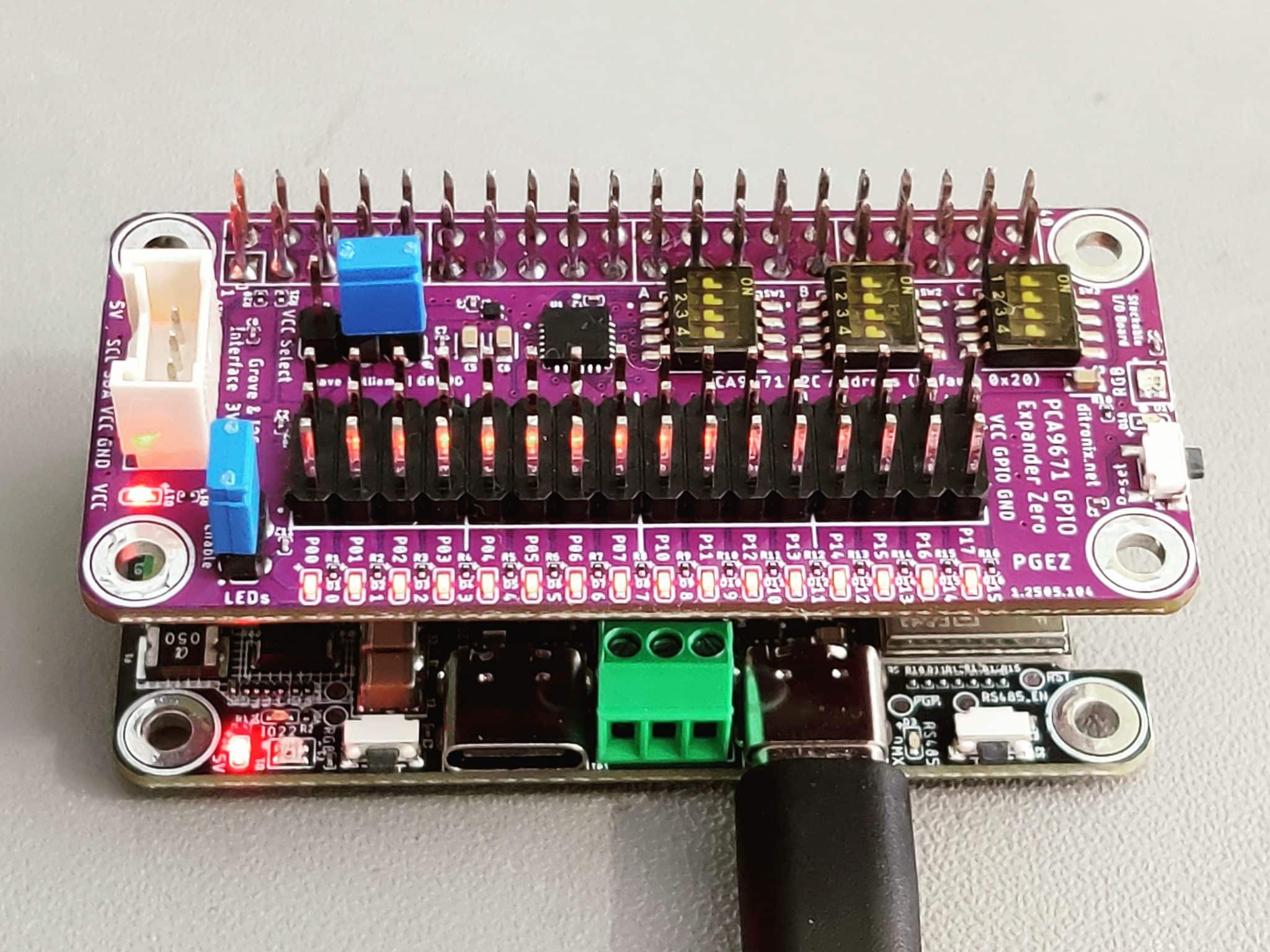

The PGEZ Zero has been designed to be as flexible as possible, providing easy interfacing support to, and not exclusively:

Raspberry Pi (and other flavours)
Espressif ESP
Arduino
ARM
STM32
AVR
Microchip PIC
GROVE EcoSystem
Others..

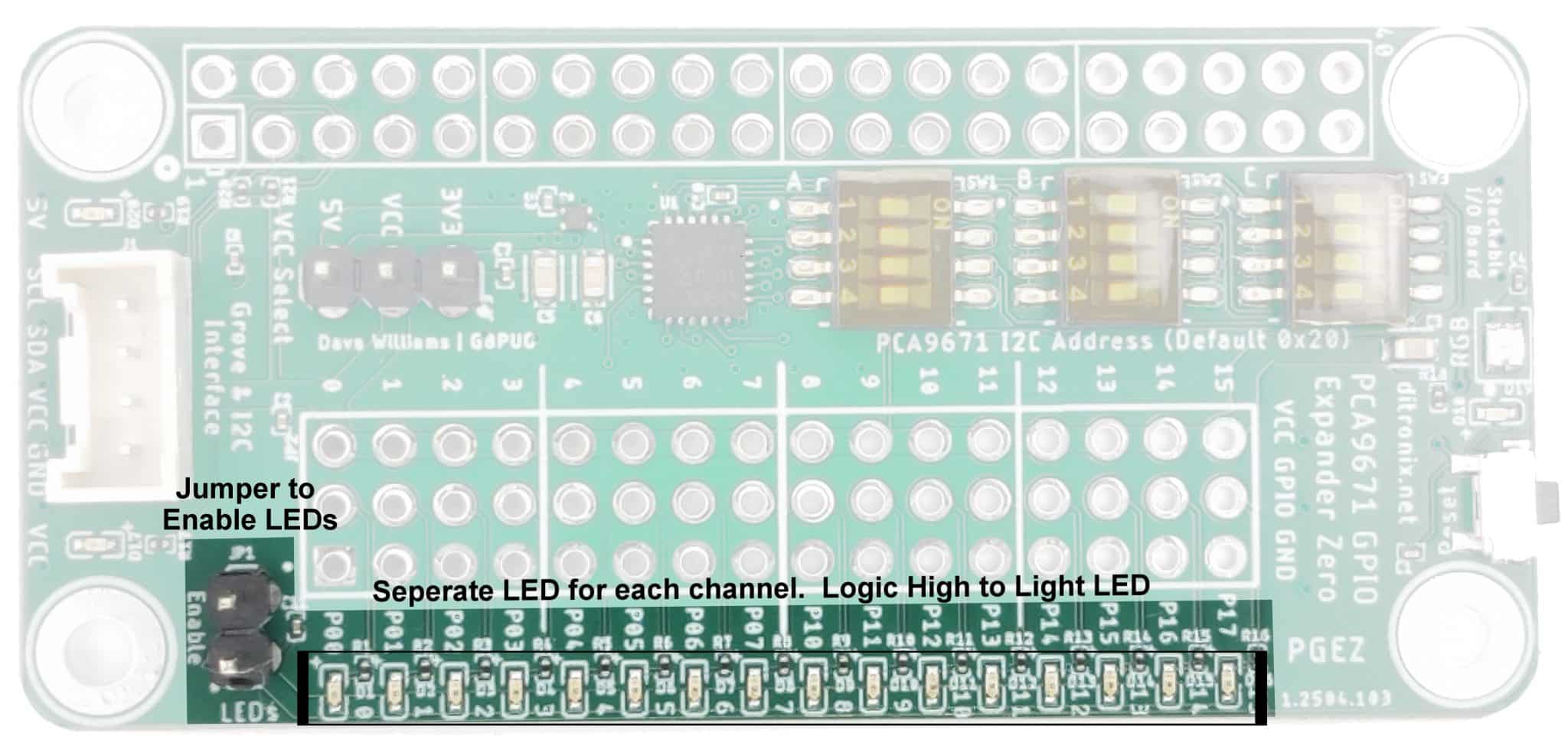

LED GPIO

The PGEZ Zero includes low current LEDs on each output, so you quick see the state of the GPIO

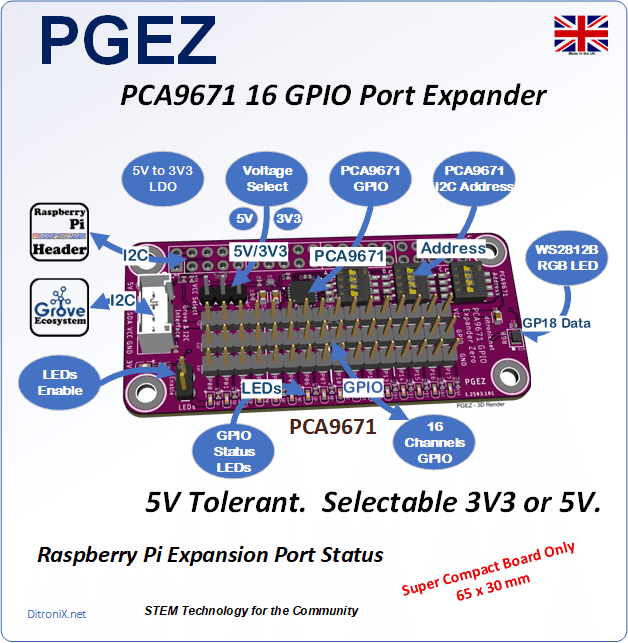

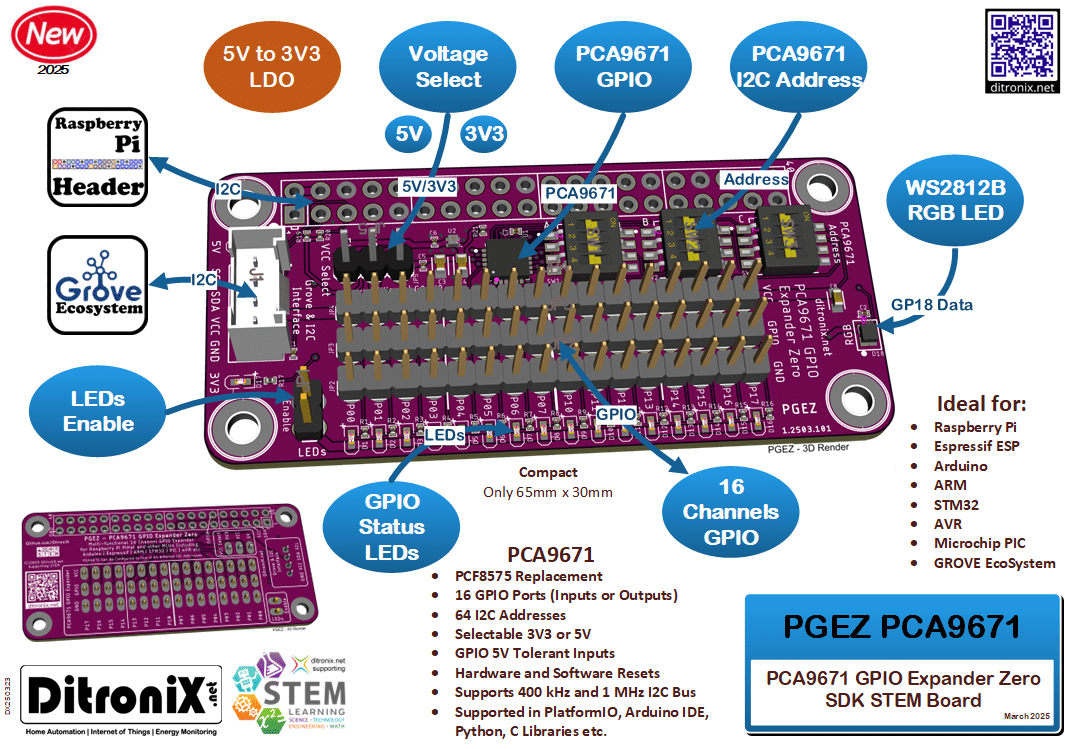

Features

PGEZ Zero features the new PCA9671 GPIO Expander.

PCF8575 Replacement
16 GPIO Ports (Inputs or Outputs)
64 I2C Addresses

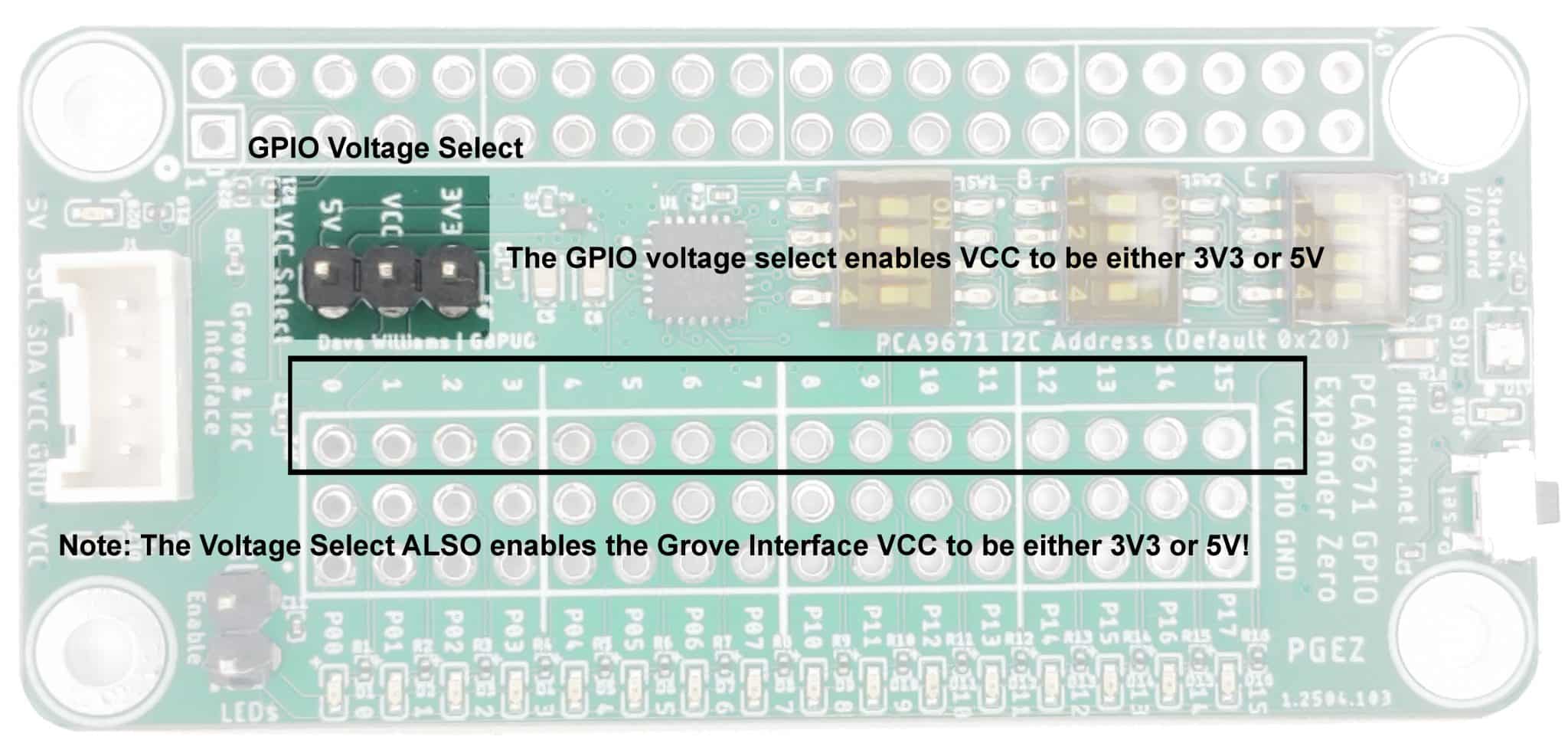

Selectable 3V3 or 5V
GPIO 5V Tolerant Inputs
Low Current LED on each GPIO (can be disabled)
Hardware and Software Resets
Supports 400 kHz and 1 MHz I2C Bus
Stackable design (up to 64 boards/addresses)

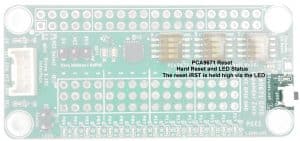

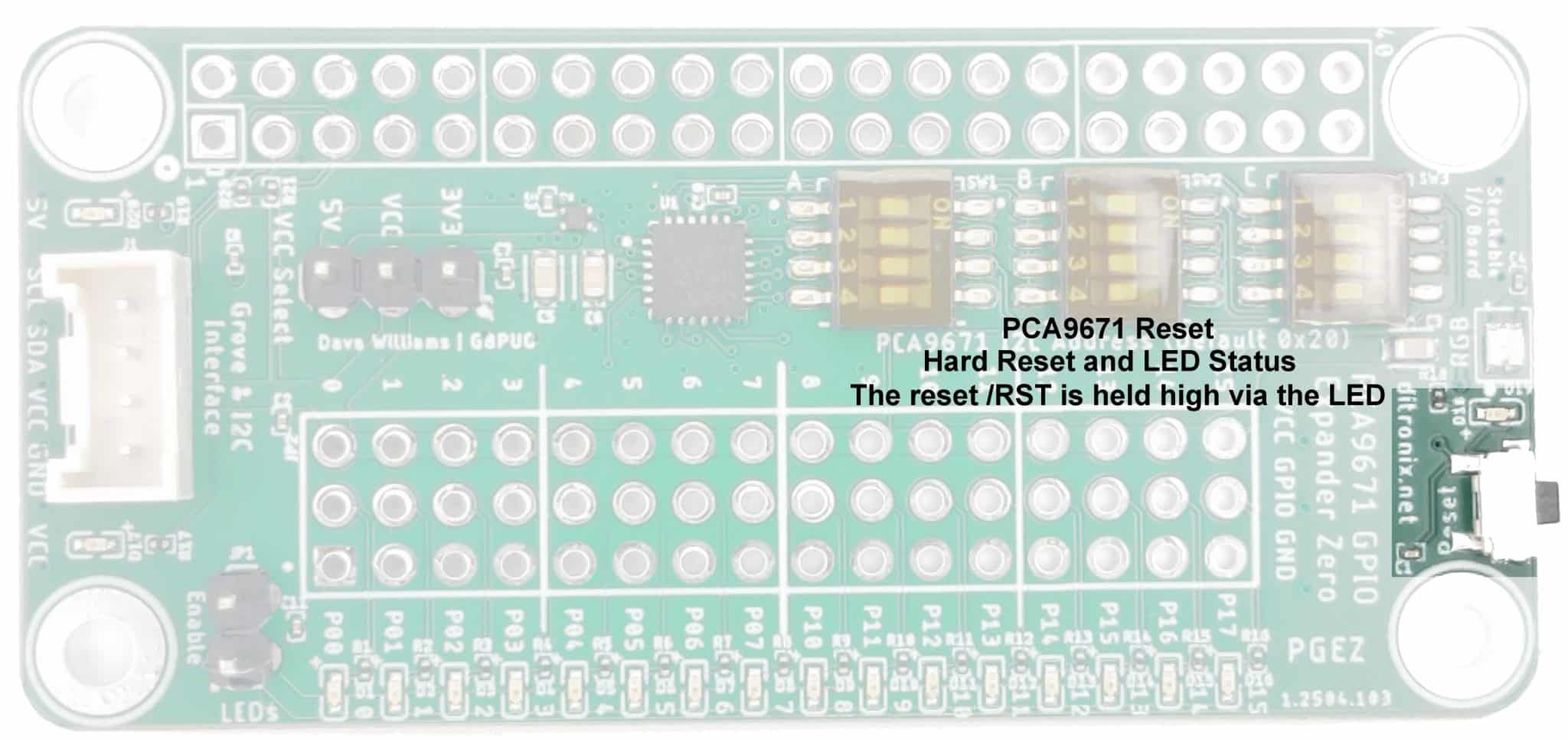

Hardware reset via Pi Header, or User Button
WS2812 RGB LED, via Pi Header GP18

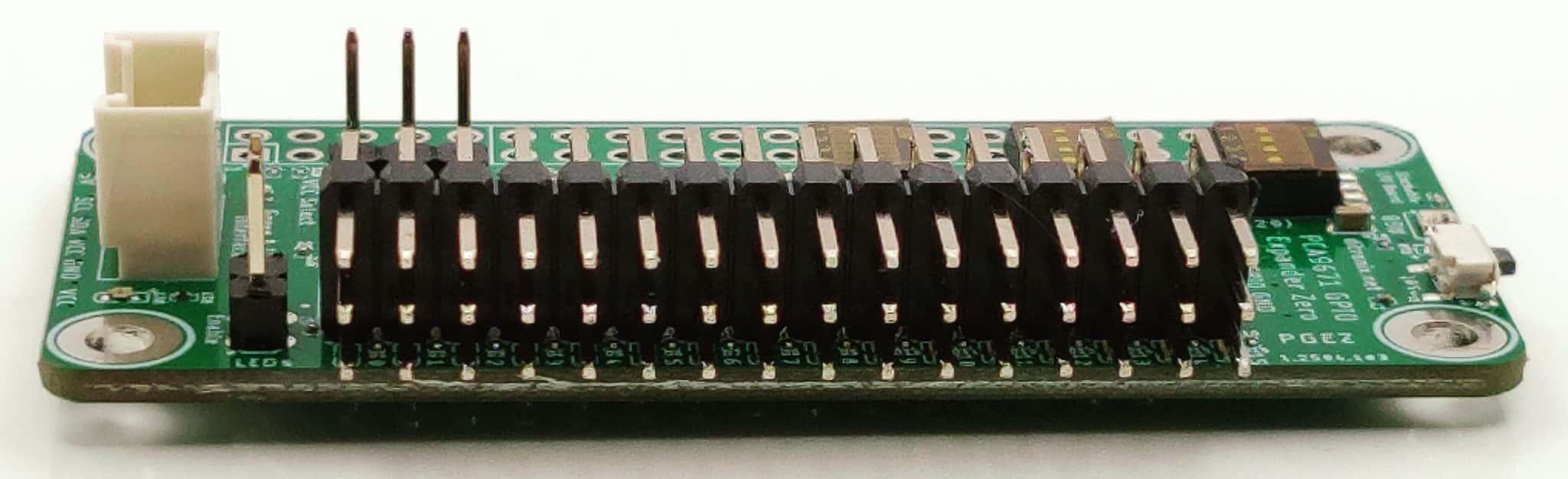

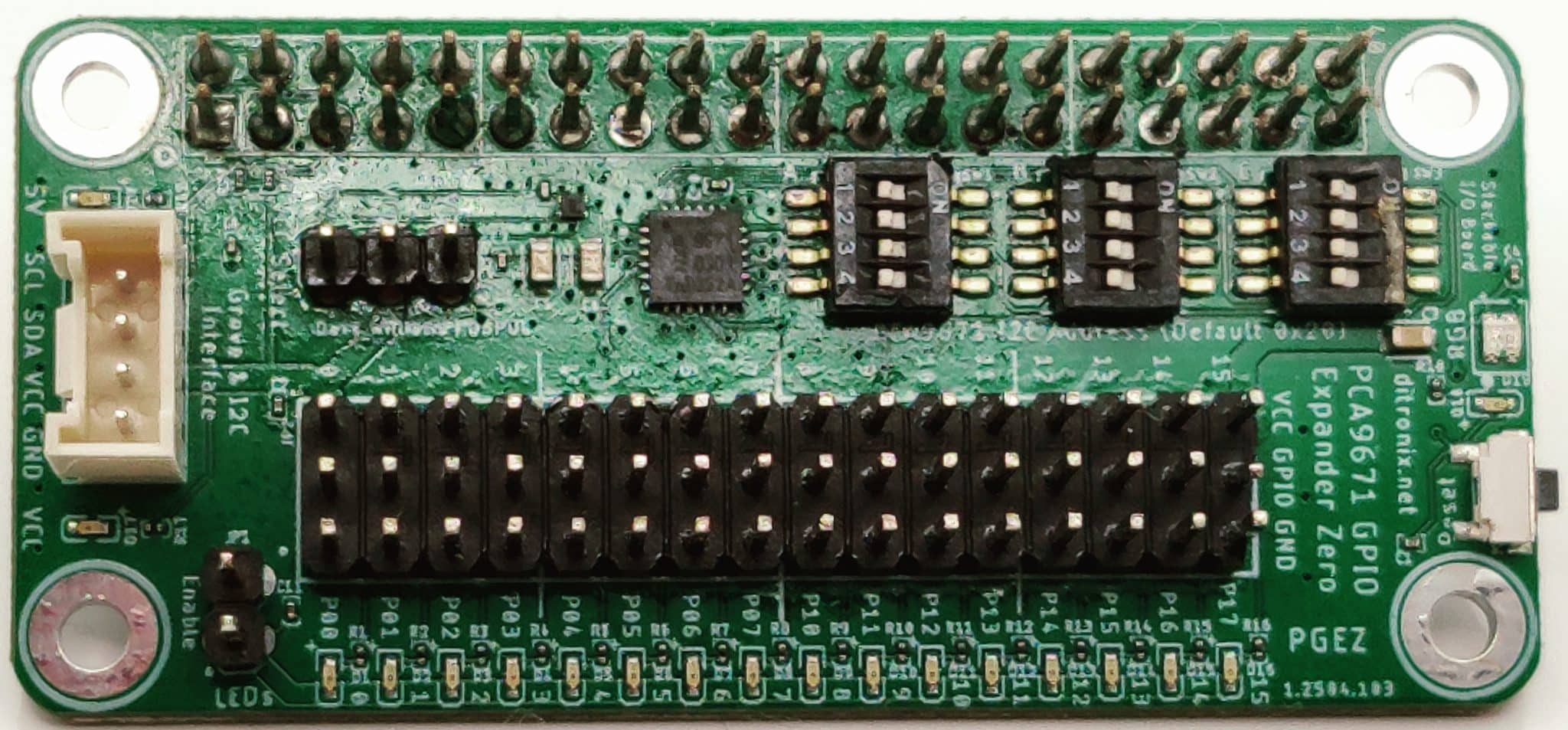

GPIO Pin Headers

The PGEZ Pin Header provides GND, GPIO and VCC (which can be selected as 3V3 or 5V).

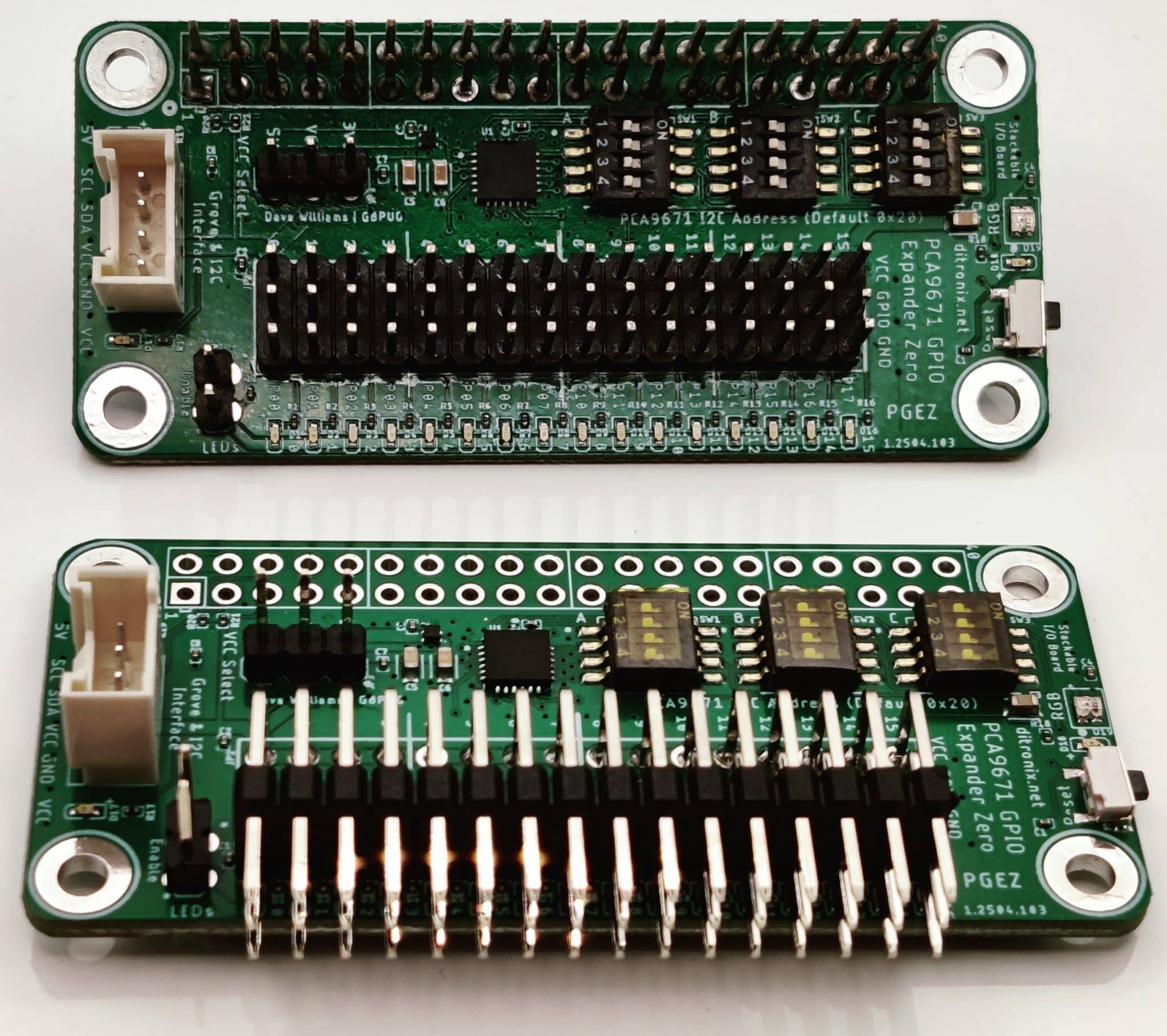

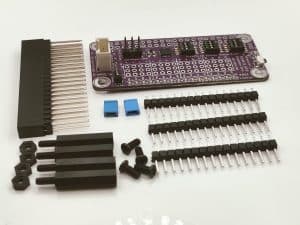

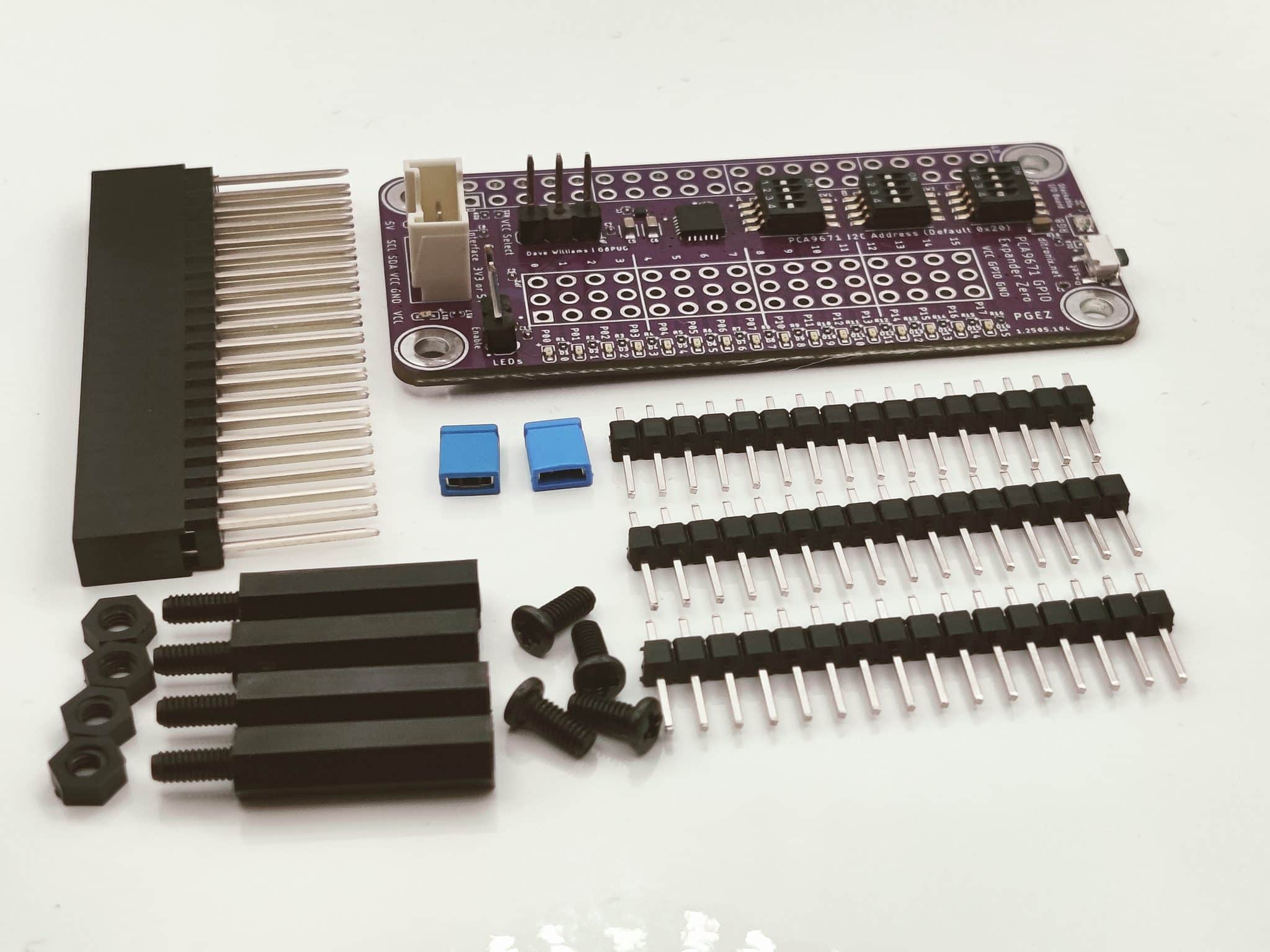

As a single board, you could solder the provided 3 x 16 Pin Headers.

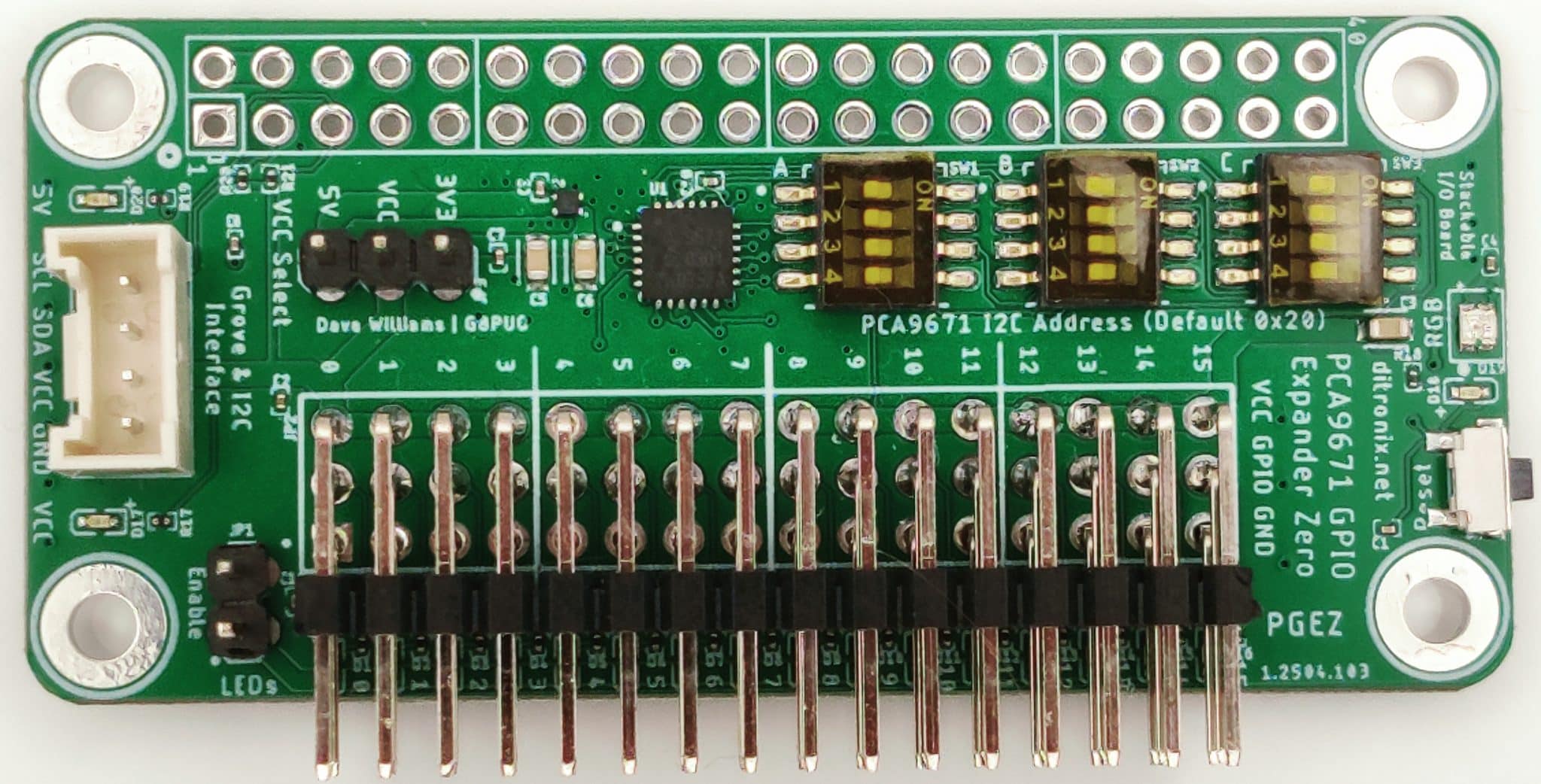

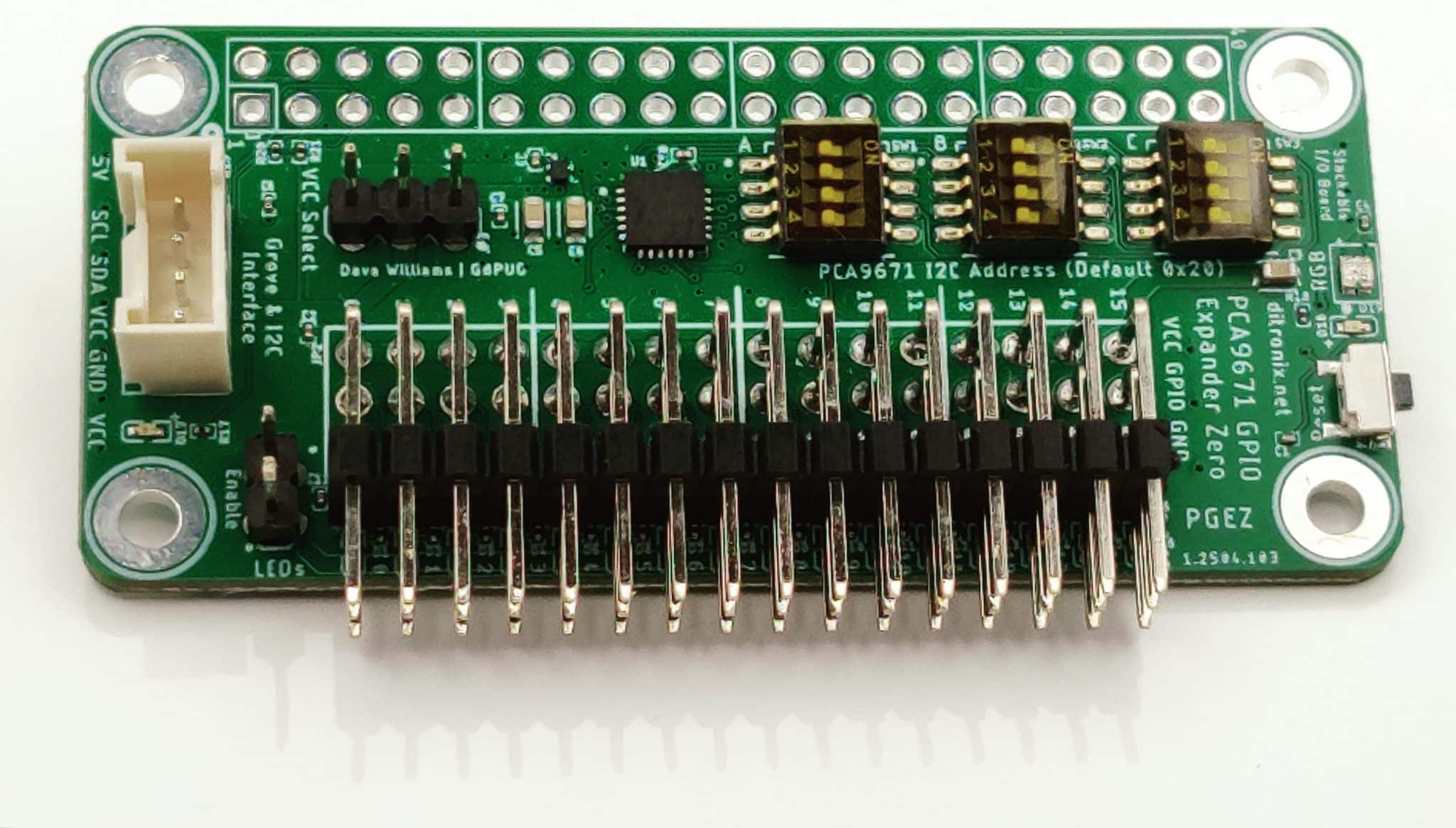

In a stacked project, angled Pin Headers could be separately purchased and fitted, so allow easy access to all 16 GPIOs.

Software Coding Support

PGEZ Zero is supported in various development environments including:

PlatformIO
Arduino IDE
Python
C Libraries
Others

PCA9671 Libraries are available for for Arduino and Raspberry Pi. The PCA9671 is a replacement product for the PCF8575 and shares most commands. It does though additionally have a hardware reset.

Library: github.com/RobTillaart/PCA9671

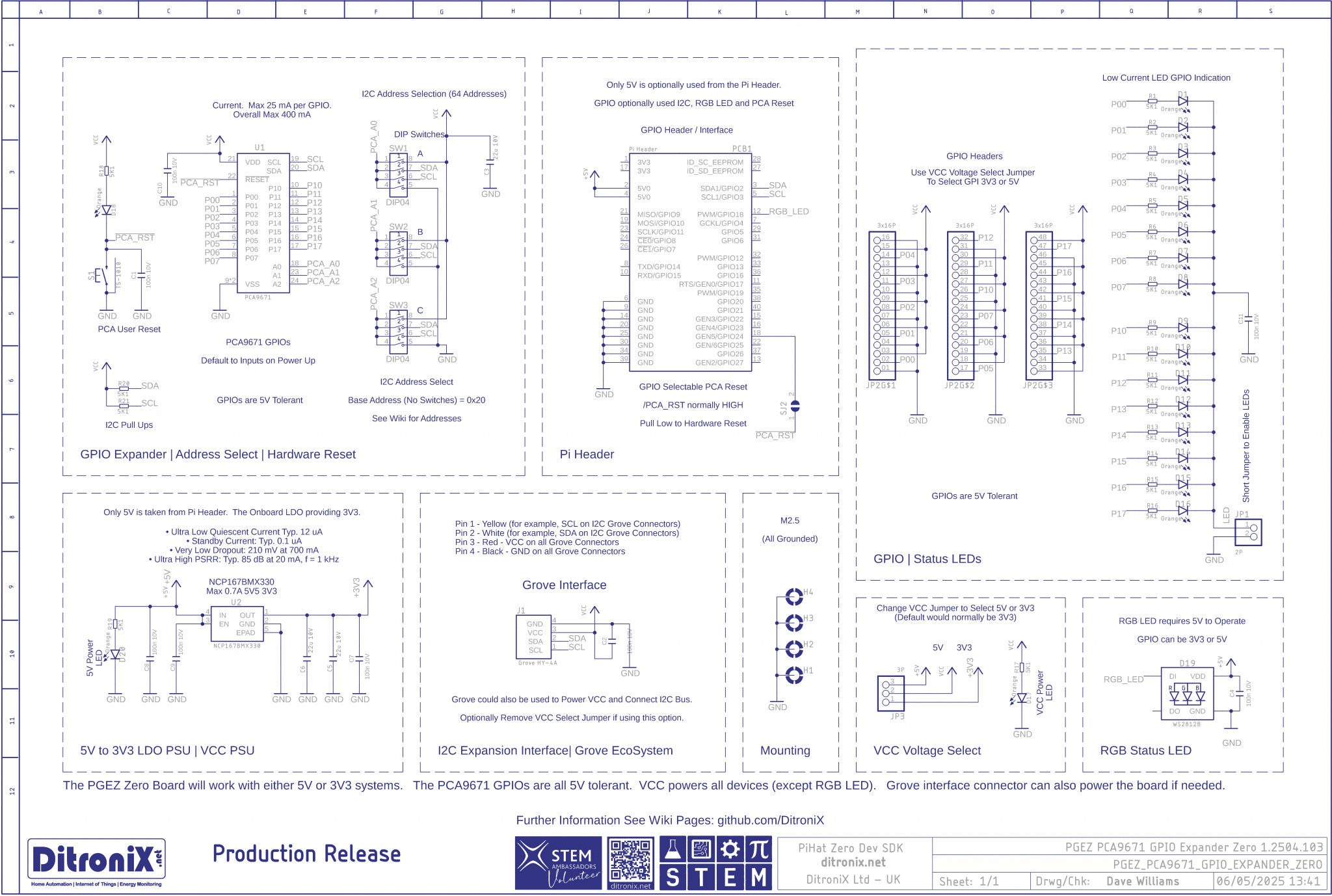

Specification

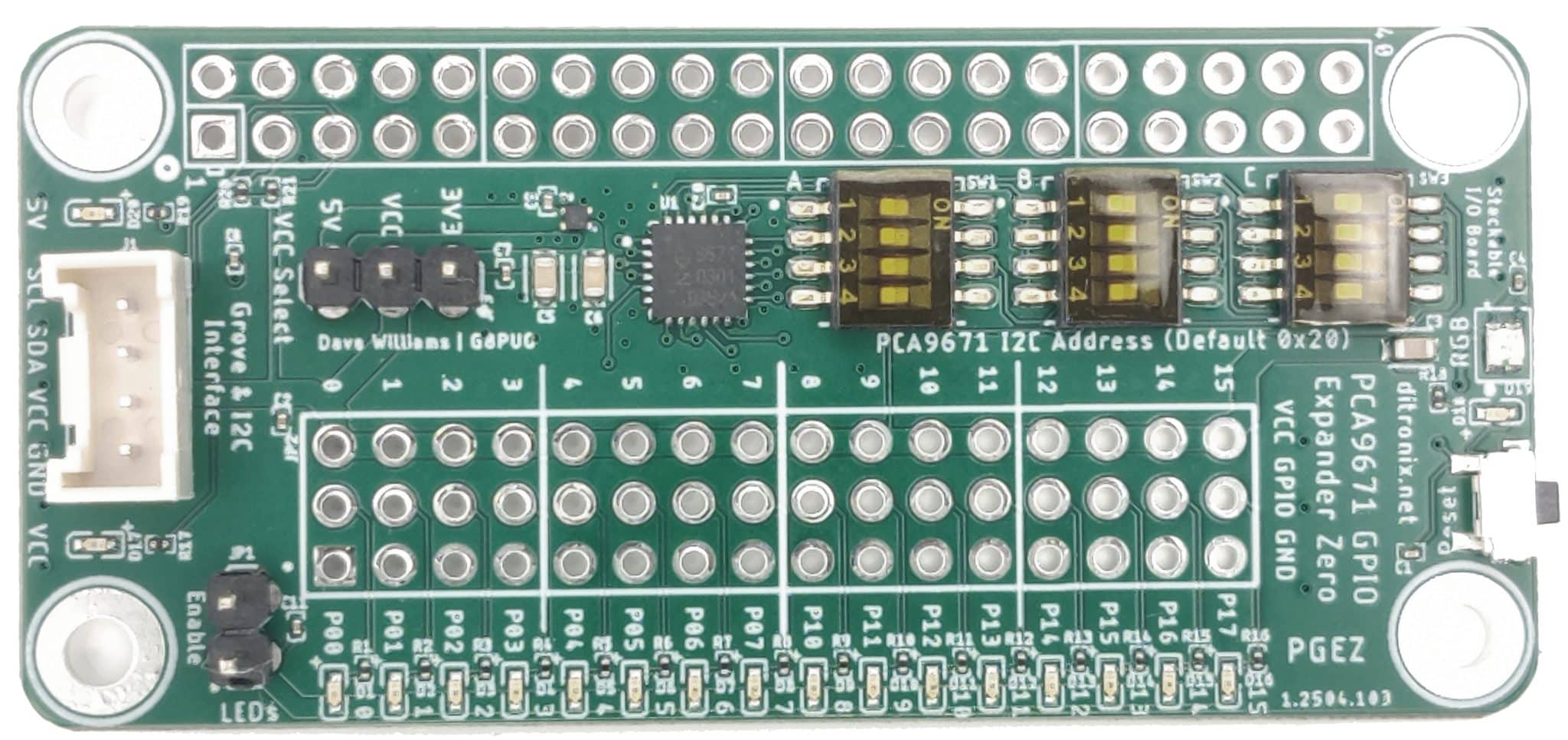

PCA9671 GPIO Expander, wrapped in a compact mechanical Pi Zero form.

PGEZ Zero has been design to be stackable. In fact, you could in theory stack 64 x PGEZ boards, each with its own I2C address, selectable using the provided DIP Switches.
