Antenna 868 MHz MHF1 Short 2.15 dBi
£2.50 GBP
Sale price
£2.50 GBP
Regular price
£2.50 GBP
Skip to product information
Antenna 868 MHz MHF1 Short 2.15 dBi
£2.50 GBP
Sale price
£2.50 GBP
Regular price
£2.50 GBP

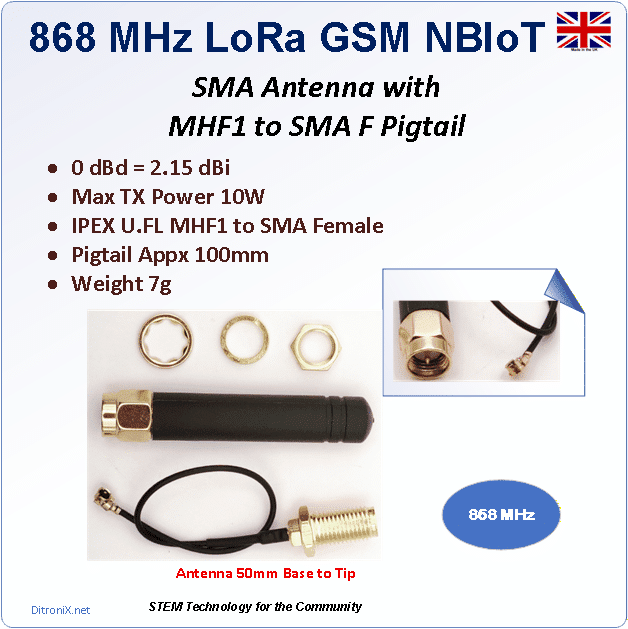

Antenna 848 MHz with IPEX MHF1 to SMA F Pigtail for Bulkhead, Panel or enclosure mounting.
This is a standard monopole antenna. Suitable for LoRa devices such as ESPRanger and ESPKnack
868 MHz suitable for LoRa, GSM and NB-IOT
Features

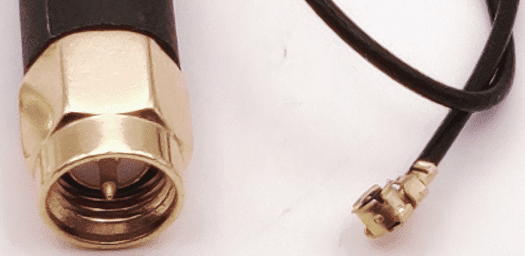

Complete IPEX/U.FL MHF1 connector with Pigtail Cable to SMA Female RF connector.
- Antenna Gain: Unity Gain 0 dBd / 2.5 dBi
- Antenna Length: approx. 5cm

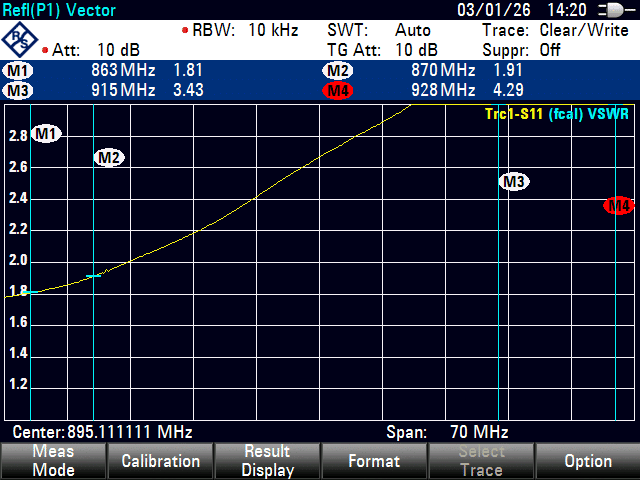

- Antenna SWR: Good and Stable ~1.8:1 @868 MHz (see example plot)
- Antenna Polarization: Vertical when upright
- Antenna Connector: SMA Male
- Pigtail Coax Cable Length: Approx. 100mm
- Pigtail Connectors IPEX/U.FL to SMA Female
- Performance: Reliable Antenna for stable and efficient signal transmission / reception
- Suitable for TX/RX: LoRa, LoRaWAN, GSM, NB-IOT

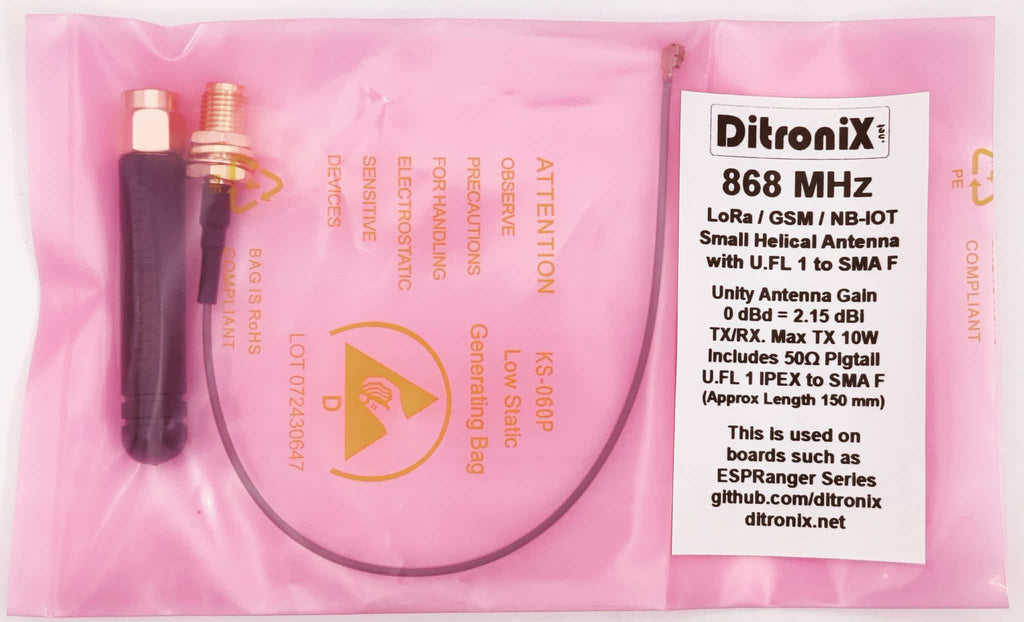

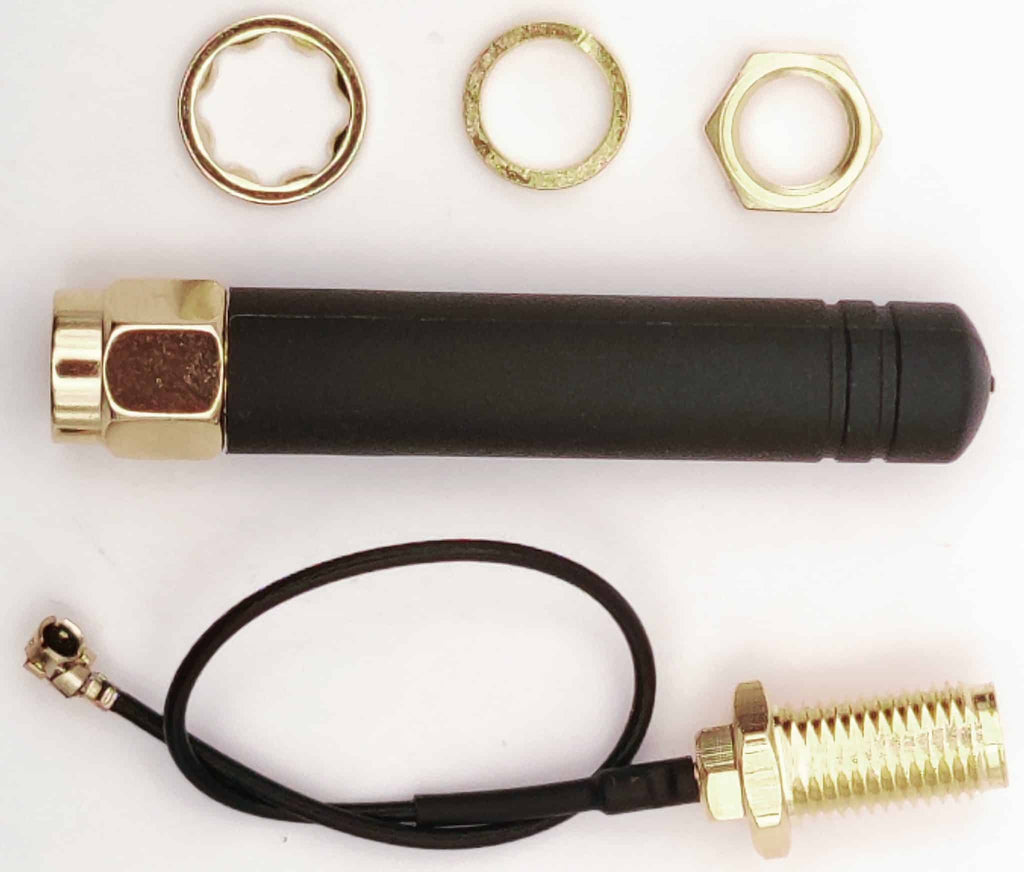

In the Box
- 868 MHz Antenna
- IPEX/U.FL Pigtail Cable to SMA Female RF connector
- SMA Mounting Nut and Washer
