Antenna GNSS GPS Compact Patch Active

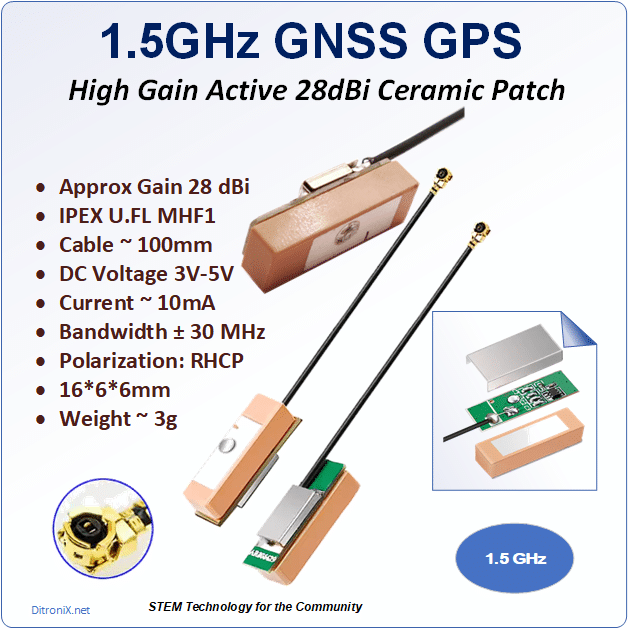

This antenna is a compact GNSS GPS antenna for 1.5GHz, with a pigtail coax to IPEM U.FL MHF1 Female connector.

The ceramic antenna base includes a built in screened two stage low noise RF preamplifier, complete with filter.  This covering the central frequency of 1575MHZ with ±30 MHz bandwidth.

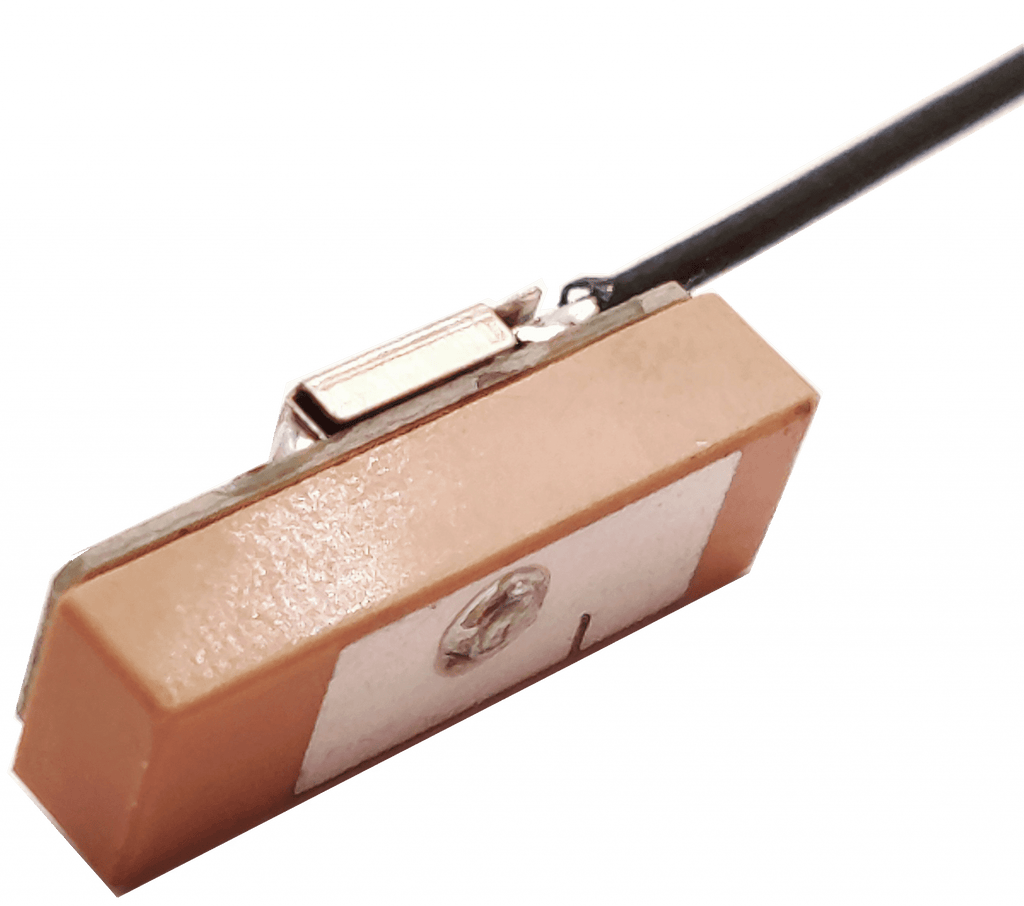

With a size of only 16mm long and 6mm square, this antenna is ideal for projects which have a confined space, allowing for an overall compact design.

The active preamplifier power consumption is around 10mA, and operates from 3 to 5V through phantom power, where DC is fed up the coax along with the RF signal.

The ESPRanger ATGM336H GNSS GPS receiver provides the power.
