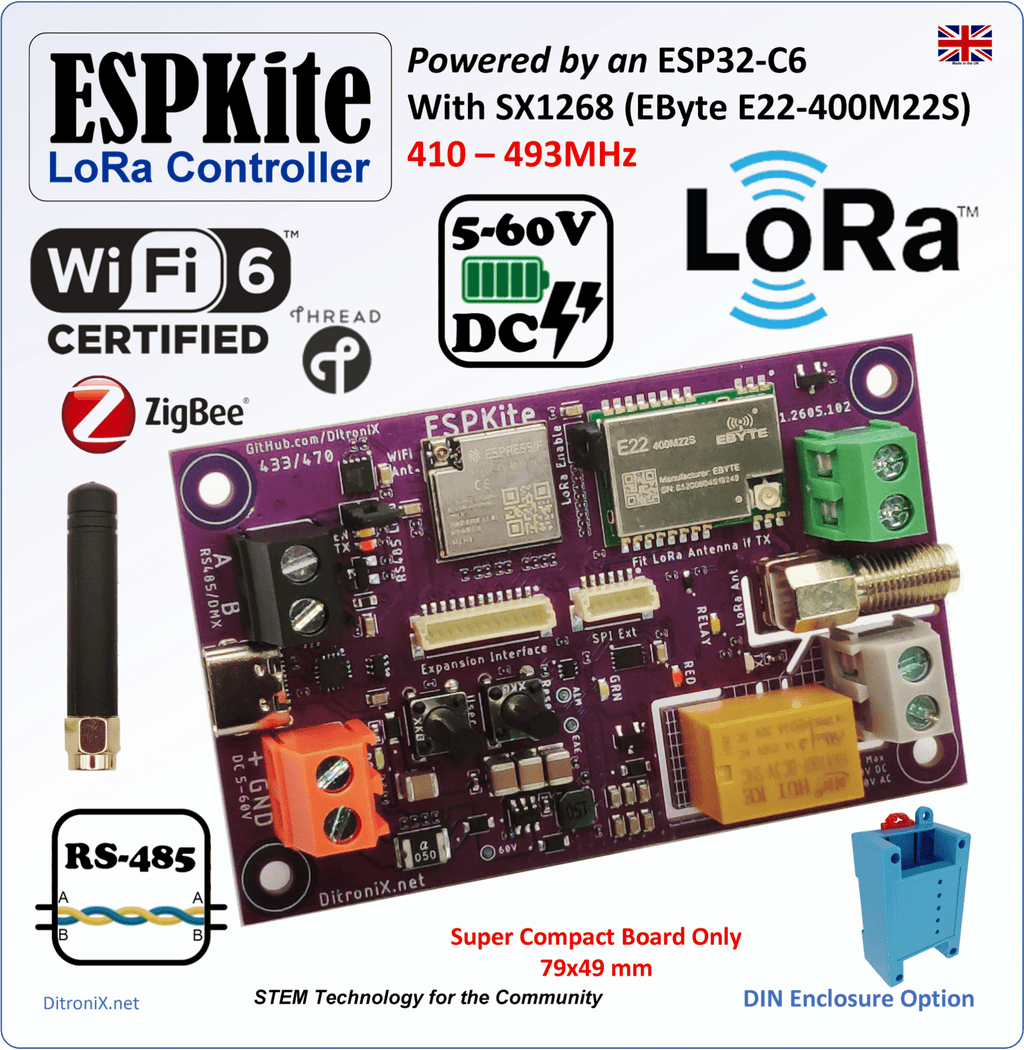

ESPKite | ESP32-C6 E22-400M22S 433MHz SX1262 LoRa RS485 5-60V Relay Output

ESPKite is a compact, feature rich, SDK board with a range of IoT technologies.

• Espressif ESP32-C6 MCU (WiFi 2.4GHz BT Zigbee Thread)
• LoRa (EByte E22-400M22S with Semtech SX1262), module covering 410 MHz through to 493 MHz
• SMA Female (LoRa Antenna Connector)
• RS485 Interface (RS-485 / DMX)
• Relay (NO 3A 30VDC 250VAC)
• GPIO
• Internal High Voltage SMPS (Power directly from 5-60V DC supply).
• Internal Expansion Ports (I2C and SPI)
• Compact board (77mm x 49mm)
• 4 x Terminal Blocks
• Type C UART / 5V Power
• DIN Enclosure Mountable

Includes

• 1 x ESPKite 433MHz Board (Fully Assembled and Tested)
• 2 x Jumpers (RS485/TX Enable)

Optional

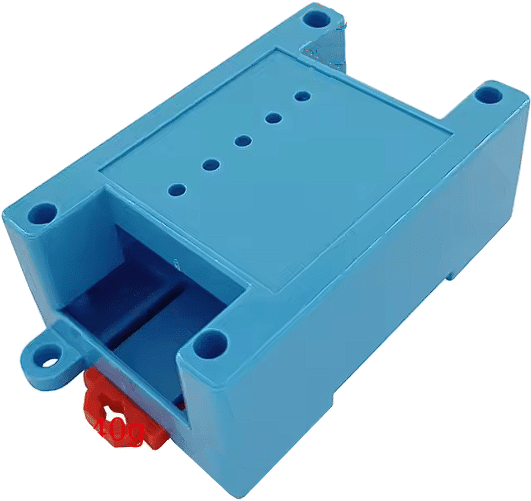

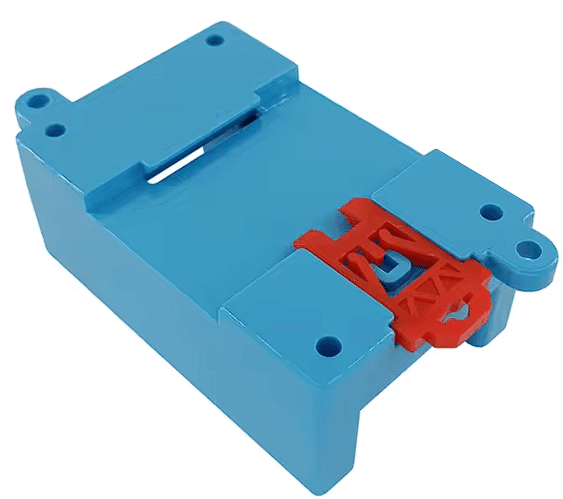

• DIN Enclosure (ABS 82*54*32mm)
• 12W and 6W Header Looms
• 433Mhz Antenna

GitHub Information
