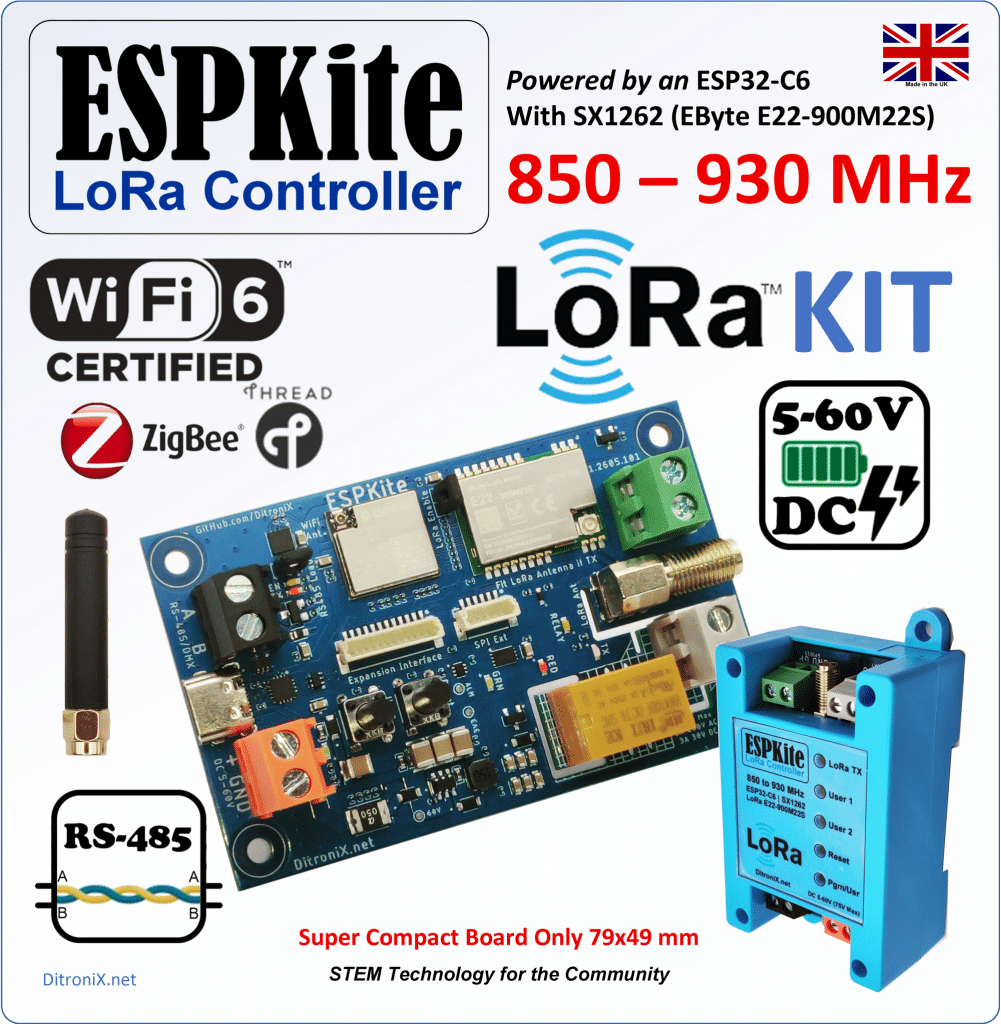

ESPKite | KIT | ESP32-C6 E22-900M22S SX1262 LoRa RS485 5-60V Relay Output

ESPKite is a compact, feature rich, SDK board with a range of IoT technologies.

• Espressif ESP32-C6 MCU (WiFi 2.4GHz BT Zigbee Thread)
• LoRa (EByte E22-900M22S with Semtech SX1262), module covering 850 MHz through to 930 MHz
• SMA Female (LoRa Antenna Connector)
• RS485 Interface (RS-485 / DMX)
• Relay (NO 3A 30VDC 250VAC)
• GPIO
• Internal High Voltage SMPS (Power directly from 5-60V DC supply).
• Internal Expansion Ports (I2C and SPI)
• Compact board (77mm x 49mm)
• 4 x Terminal Blocks
• Type C UART / 5V Power
• DIN Enclosure Mountable

Includes (Complete Kit)

• 1 x ESPKite Board (Fully Assembled and Tested)

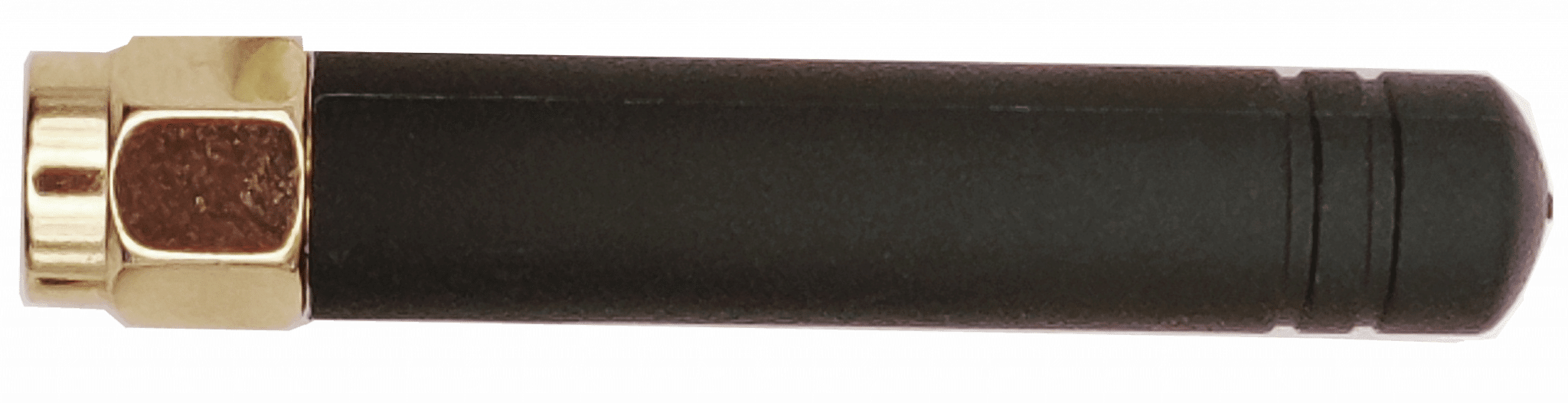

• 1 x 868MHz Compact Antenna (SMA)
• 2 x Jumpers (RS485/TX Enable)
• 12W and 6W Header Looms

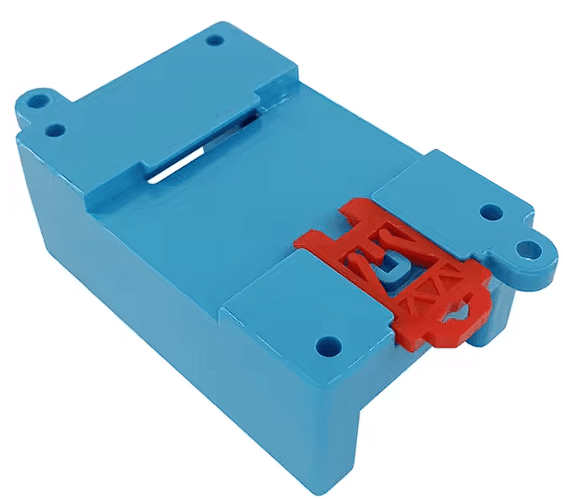

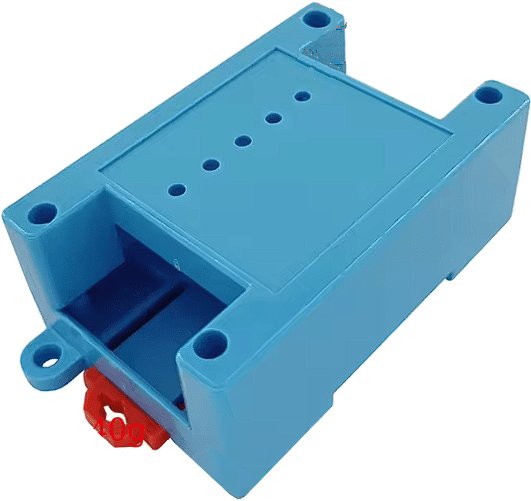

• 1 x DIN Enclosure (ABS 82*54*32mm)
