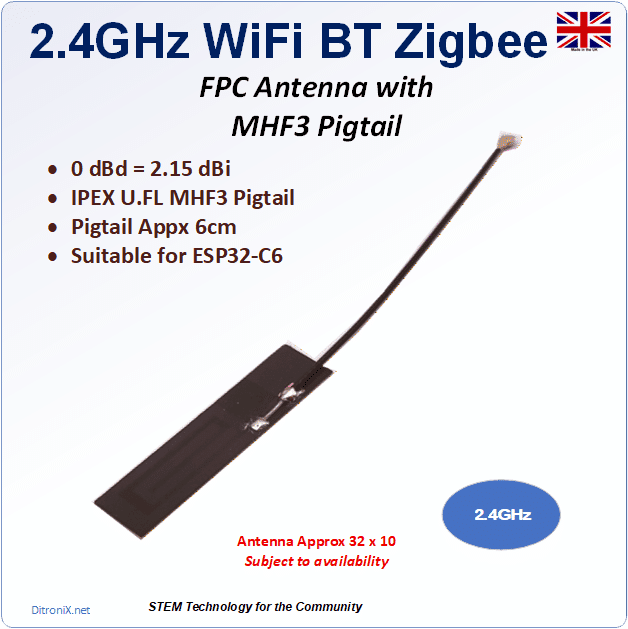

Antenna 2.4GHz MHF3 FPC

£4.50 (inc. VAT)

2.4 GHz suitable for WiFi ZigBee BT Bluetooth Foldable Antenna, complete IPEX/U.FL MHF3 connector with Pigtail Cable to SMA Female RF connector.

For Bulkhead, Panel or enclosure mounting.

In stock (can be backordered)

SKU: ANT-2.4GHz-MHF3-FPC Categories: , Tags: , , , , , , , , Brand:

Description

The Antenna

FPC Antenna 2.4G with Pigtail Cable Panel or enclosure mounting.

2.4 GHz suitable for WiFi ZigBee BT Bluetooth Antenna.

Features

  • Antenna Gain: Unity Gain 0 dBd / 2.5 dBi
  • Antenna Size: approx. 38 x 10cm
  • Antenna SWR: Good ~1.8:1 @ 2.4 GHz (see example plot)
  • Antenna Polarization: Linearly. Pending position.
  • Antenna Connector: IPEX U.FL MHF3
  • Pigtail Coax Cable Length:60mm
  • Performance: Reliable Antenna for stable and efficient signal transmission / reception
  • Suitable for TX/RX: WiFi 2.4GHz, ZigBee, Thread, BT, Bluetooth, BTLE

Antenna Size subject to availability, so size may vary vey slightly.

In the Box

  • 2.4 GHz FPC Antenna

Specification

Complete IPEX/U.FL MHF3 connector with Pigtail Cable to SMA Female RF connector.

  • Antenna Gain: Unity Gain 0 dBd / 2.5 dBi
  • Antenna Length: approx. 11cm
  • Antenna SWR: Very Good and Stable ~1.2:1 @ 2.4 GHz (see example plots)
  • Antenna Polarization: Vertical when upright
  • Antenna Connector: SMA Male
  • Pigtail Coax Cable Length: 170mm
  • Pigtail Connectors IPEX/U.FL to SMA Female
  • Folding: Antenna folder to allow optimal positioning
  • Performance: Reliable Antenna for stable and efficient signal transmission / reception
  • Suitable for TX/RX: WiFi 2.4GHz, ZigBee, Thread, BT, Bluetooth, BTLE (Vertical Polarization)
  • Can be used for RX: GPS (Horizontal Polarization)

Additional information

Weight 1 g
Dimensions 32 × 10 mm
Country of Manufacture

United Kingdom
HS Code

8529109500
Manufacturer

DitroniX Ltd
