ESPKnack ESP32-C6 IoT Wi-Fi LoRa SX1262 Complete Kit

Description

ESPKnack – ESP32-C6 IoT Wi-Fi LoRa SX1262 Galvanically Isolated Interfaces RS485 RTC

ESPKnack – Ideal STEM Learning Development Kit, or fully fledged project for the home, industry or commercial installations.

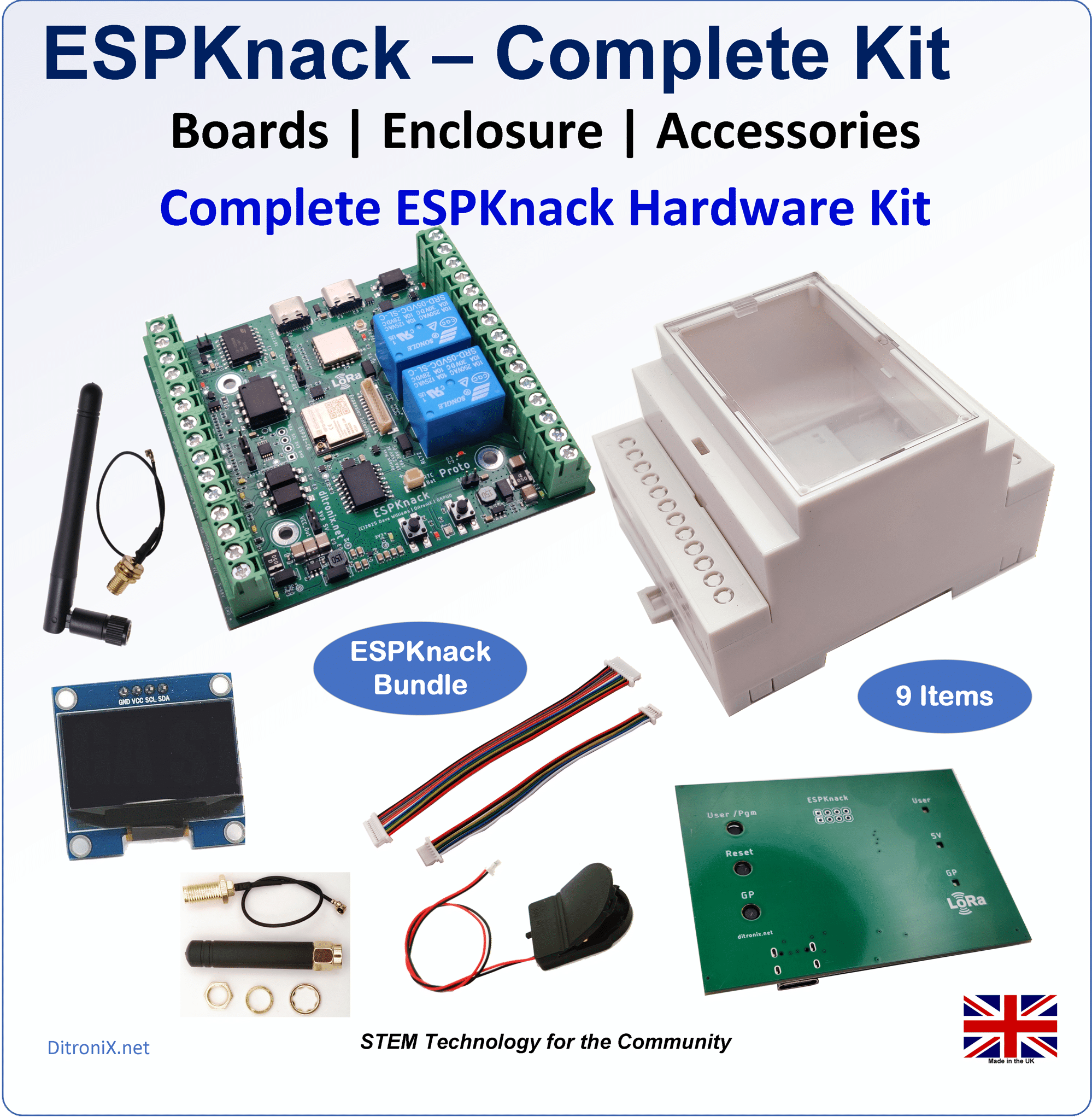

This product bundle is a complete ‘ESPKnack Kit’

• ESPKnack – Main Board
• Panel Display Interface Board
• DIN Enclosure
• Battery Holder with Switch
• OLED 0.96 128×64
• Antenna MHF3 2.4 GHz Foldable and Pigtail Cable
• Antenna 868 MHz and MHF1 Pigtail Cable
• Ribbon Cable 12W
• Ribbon Cable 6W

Information

The ESPKnack has been designed to project versatility, from a bench STEM learning board, LoRa Dev Board, or a complete fully kitted LoRa project.

Galvanic Isolation on both Inputs and Outputs, with multiple interfaces and expansion options.

You have the option to easily disable the LoRa device, so using this ESPKnack just on WiFi, Bluetooth, Zigbee or Thread.

The options are left to your imagination, with this super ESPKnack.

Additional Information

Details maybe found on the GitHub / WiKi

What is ESPKnack?

Following in the success of the ESPRanger, coupled with user and backer feedback to further expand features and capabilities in other projects, this has culminated in the ESPKnack.

What I have done in ESPKnack, is to take the core of ESPuno Pi Zero with ESPRanger, and couple in, or fused, essentially Galvanic Isolation for inputs and outputs.

The below video is a preview of the ESPKnack using a concept board with ESPRanger.   A more detailed video will follow using the ESPKnack Beta Board as part of lab testing.

The ESPKnack will be the main board, together with optional Panel display board and DIN enclosure.

The ESPKnack can also be used as a standard ESP32-C6 based interface board (without LoRa), simply by not adding the LoRa enable jumper.  This give you a great all around interfacing board, using the ESP Wi-Fi, Bluetooth, Thread or ZigBee communications.

Overview of Features

• LoRa (LoRaWAN) SX1262 Module (868MHz through to 915MHz)
• Galvanic Isolated Inputs
  • Industry Standard RS-485 (or DMX)
  • 4-20mA Current Loop
  • Digital and Analogue Inputs
• Galvanic Isolated Outputs
  • Dual Relay (with NC/NO Contacts)
  • Digital or PWM
• ADS1115 ADC 16bit
• DS3231SN Accurate RTC (with optional Battery Backup)
• 64Kbit EEPROM
• 5-60V DC Power Input SMPS (Wide Operating Voltage)
• Digital Temperature Board Sensor
• Type C Interfaces (UART and MCU)
• Expansion Ports
